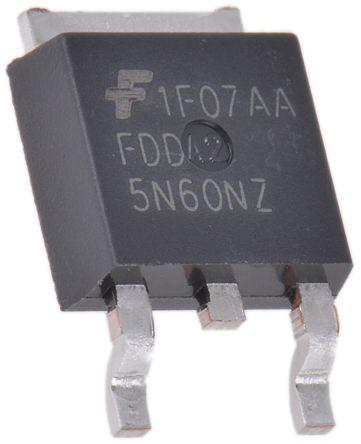

FDD5N60NZTM
Manufacturer
onsemi
Description
N-Channel Power MOSFET, UniFETTM II, 600 V, 4 A, 2 , DPAK
Datasheet
DownloadProduct Attributes
Type
Case/Package
Contact Plating
Continuous Drain Current (ID)
Drain to Source Breakdown Voltage
Drain to Source Resistance
Drain to Source Voltage (Vdss)
Element Configuration
Fall Time
Gate to Source Voltage (Vgs)
Height
Input Capacitance
Lead Free
Length
Lifecycle Status
Manufacturer Lifecycle Status
Max Junction Temperature (Tj)
Max Operating Temperature
Max Power Dissipation
Min Operating Temperature
Mount
Number of Channels
Number of Elements
Number of Pins
Power Dissipation
Rds On Max
Resistance
Rise Time
RoHS
Schedule B
Turn-Off Delay Time
Turn-On Delay Time
Weight
Width
Description
DPAK
Tin
4 A
600 V
1.65 Ω
600 V
Single
20 ns
25 V
2.517 mm
600 pF
Lead Free
6.73 mm
Production (Last Updated: 4 years ago)
ACTIVE (Last Updated: 4 years ago)
150 °C
150 °C
83 W
-55 °C
Surface Mount
1
1
3
83 W
2 Ω
2 Ω
20 ns
Compliant
8541290080, 8541290080|8541290080|8541290080|8541290080|8541290080
35 ns
15 ns
260.37 mg
6.22 mm
₹101.55
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
1
₹101.55
₹101.55
10
₹79.51
₹795.12
25
₹79.51
₹1987.79
50
₹79.51
₹3975.59
100
₹56.39
₹5638.90
500
₹52.95
₹26477.15
1000
₹51.57
₹51566.65
