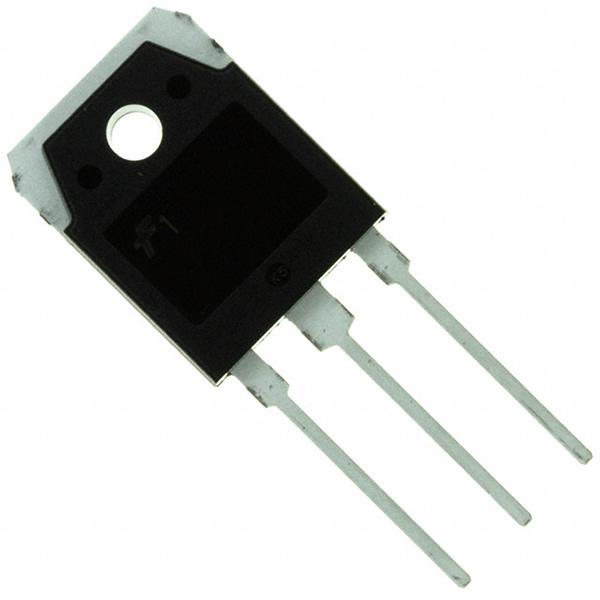

FQA46N15

Manufacturer

onsemi

Description

N-Channel Power MOSFET, QFET, 150V, 50A, 42m, TO-3P

Datasheet

download datasheetDownload

Product Attributes

Type

Contact Plating

Continuous Drain Current (ID)

Current Rating

Drain to Source Breakdown Voltage

Drain to Source Resistance

Drain to Source Voltage (Vdss)

Element Configuration

Fall Time

Gate to Source Voltage (Vgs)

Height

Input Capacitance

Lead Free

Length

Lifecycle Status

Manufacturer Lifecycle Status

Max Operating Temperature

Max Power Dissipation

Min Operating Temperature

Mount

Number of Elements

Number of Pins

Packaging

Power Dissipation

Radiation Hardening

Rds On Max

REACH SVHC

Resistance

Rise Time

RoHS

Schedule B

Threshold Voltage

Turn-Off Delay Time

Turn-On Delay Time

Voltage Rating (DC)

Weight

Width

Description

Tin

50 A

50 A

150 V

42 mΩ

150 V

Single

200 ns

25 V

20.1 mm

3.25 nF

Lead Free

15.8 mm

EOL (Last Updated: 1 year ago)

LAST SHIPMENTS (Last Updated: 1 year ago)

175 °C

250 W

-55 °C

Through Hole

1

3

Tape & Reel (TR)

250 W

No

42 mΩ

No

42 MΩ

320 ns

Compliant

8541290080, 8541290080|8541290080, 8541290080|8541290080|8541290080, 8541290080|8541290080|8541290080|8541290080

4 V

210 ns

35 ns

150 V

6.401 g

5 mm

₹281.89

In Stock

Quantity
Shipment
delivery

Ships in 7-10 days

Add to Listarrow_icon

Quantity

Unit Price

Ext. Price

1

₹281.89

₹281.89

10

₹244.66

₹2446.56

25

₹244.66

₹6116.39

50

₹244.66

₹12232.78

100

₹203.70

₹20369.59

500

₹195.72

₹97862.20

1000

₹183.08

₹183082.35
