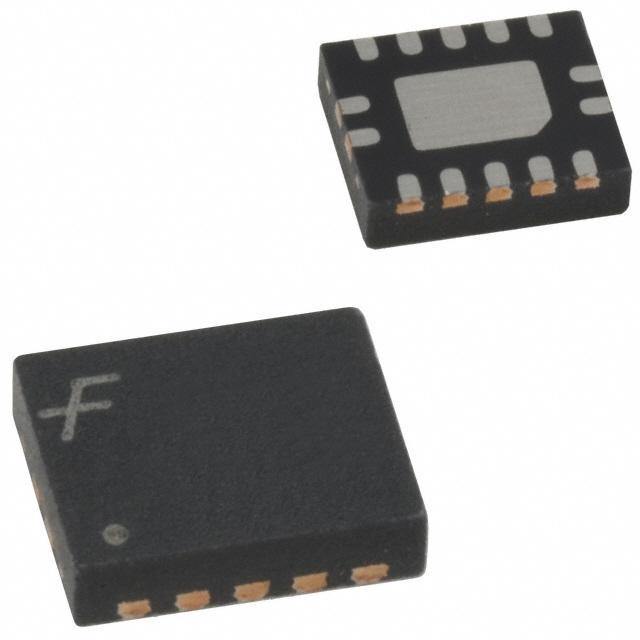

FSA2380BQX
Manufacturer
onsemi
Description
FSA Series DP3T 5 V 0.75 Ohm SMT Negative Swing Audio Source Switch - DQFN-14
Datasheet
DownloadProduct Attributes
Type
-3db Bandwidth
Ambient Temperature Range High
Bandwidth
China RoHS
Height
Height - Seated (Max)
Lead Free
Length
Lifecycle Status
Logic Function
Manufacturer Lifecycle Status
Max Junction Temperature (Tj)
Max Operating Temperature
Max Power Dissipation
Max Supply Current
Max Supply Voltage
Min Operating Temperature
Min Supply Voltage
Mount
Nominal Supply Current
Number of Bits
Number of Channels
Number of Circuits
Number of Inputs
Number of Outputs
Number of Pins
Number of Terminals
On-State Resistance
Operating Supply Voltage
Power Dissipation
REACH SVHC
Resistance
RoHS
Schedule B
Supply Type
Terminal Pitch
Throw Configuration
Turn-Off Delay Time
Turn-On Delay Time
Weight
Width
Description
120 MHz
85 °C
120 MHz
Compliant
850 µm
800 µm
Lead Free
3 mm
EOL (Last Updated: 2 years ago)
Multiplexer
LAST SHIPMENTS (Last Updated: 2 years ago)
150 °C
85 °C
2.5 µW
500 nA
4.3 V
-40 °C
2.7 V
Surface Mount
220 nA
2
3
2
2
6
14
14
2 Ω
3.3 V
2.5 W
Yes
2 Ω
Compliant
8542390000, 8542390000|8542390000|8542390000|8542390000|8542390000
Single
500 µm
DP3T
45 ns
60 ns
120 mg
2.5 mm
Out of Stock
Ships in 7-10 days
