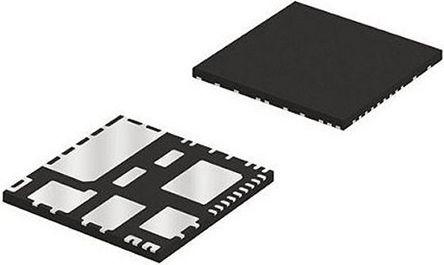

FSB70450
Manufacturer
onsemi
Description
Motor / Motion / Ignition Controllers & Drivers 500V, 1.9ohm, PQFN Smart power module
Datasheet
DownloadProduct Attributes
Type
Case/Package
China RoHS
Collector Emitter Voltage (VCEO)
Current
Drain to Source Resistance
Frequency
Height
Length
Lifecycle Status
Manufacturer Lifecycle Status
Max Collector Current
Max Current Rating
Max Operating Temperature
Max Power Dissipation
Max Supply Current
Max Supply Voltage
Min Breakdown Voltage
Min Operating Temperature
Mount
Number of Outputs
Number of Pins
Number of Terminals
Operating Supply Current
Operating Supply Voltage
Output Current
REACH SVHC
RoHS
Switching Frequency
Voltage
Weight
Width
Description
Module
Non-Compliant
500 V
4.8 A
1.9 Ω
15 kHz
1.4 mm
13 mm
Production (Last Updated: 4 years ago)
ACTIVE (Last Updated: 4 years ago)
4.8 A
4.8 A
150 °C
110 W
3.2 mA
400 V
500 V
-40 °C
Surface Mount
3
27
27
1.7 mA
15 V
4.8 A
Yes
Compliant
15 kHz
500 V
2.174663 g
13 mm
In Stock
Quantity
MOQ : 1
Per Unit Price
₹945.22
Total Price
₹945.22
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹945.22
₹945.22
10
₹677.21
₹6772.15
25
₹677.29
₹16932.15
50
₹676.22
₹33810.94
100
₹519.43
₹51942.62
500
₹505.86
₹252930.27
