FTSH-105-01-L-DV-007-K
Manufacturer
Samtec
Description

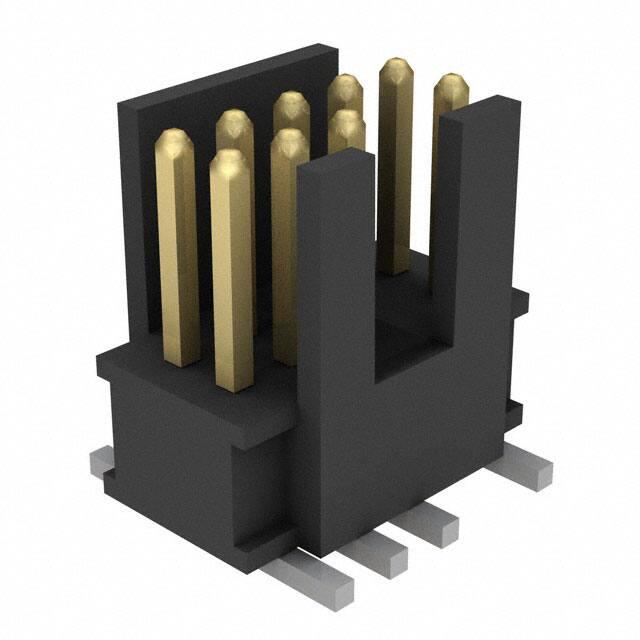

SAMTEC - FTSH-105-01-L-DV-007-K - Pin Header, Board-to-Board, Wire-to-Board, 1.27 mm, 2 Rows, 10 Contacts, Surface Mount, FTSH
Datasheet
DownloadProduct Attributes
Type
Connector Type
Contact Style
Pitch
Number of Positions
Number of Rows
Row Spacing - Mating
Number of Positions Loaded
Style
Shrouded
Mounting Type
Termination
Fastening Type
Contact Mating Length
Insulation Height
Contact Shape
Contact Mating Length
Contact Finish Thickness - Mating
Contact Location
Contact Material
Insulation Material
Features
Max Operating Temperature
Flammability Rating
Insulation Color
Max Current Rating
Description
Header, Cuttable
Male Pin
0.050" (1.27mm)
10
2
0.050" (1.27mm)
9
Board to Board or Cable
Unshrouded
Surface Mount
Solder
Push-Pull
0.120" (3.05mm)
0.099" (2.51mm)
Square
Gold
10.0µin (0.25µm)
Tin
Phosphor Bronze
Liquid Crystal Polymer (LCP)
Keying Shroud
-55°C ~ 125°C
UL94 V-0
Black
3.4A per Contact
₹326.65
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
1
₹326.65
₹326.65
10
₹318.61
₹3186.11
25
₹318.61
₹7965.25
50
₹318.61
₹15930.51
100
₹257.55
₹25754.51
500
₹205.06
₹102530.32
1000
₹180.65
₹180649.36
Product Attributes
Type
Connector Type
Contact Style
Pitch
Number of Positions
Number of Rows
Row Spacing - Mating
Number of Positions Loaded
Style
Shrouded
Mounting Type
Termination
Fastening Type
Contact Mating Length
Insulation Height
Contact Shape
Contact Mating Length
Contact Finish Thickness - Mating
Contact Location
Contact Material
Insulation Material
Features
Max Operating Temperature
Flammability Rating
Insulation Color
Max Current Rating
Description
Header, Cuttable
Male Pin
0.050" (1.27mm)
10
2
0.050" (1.27mm)
9
Board to Board or Cable
Unshrouded
Surface Mount
Solder
Push-Pull
0.120" (3.05mm)
0.099" (2.51mm)
Square
Gold
10.0µin (0.25µm)
Tin
Phosphor Bronze
Liquid Crystal Polymer (LCP)
Keying Shroud
-55°C ~ 125°C
UL94 V-0
Black
3.4A per Contact
