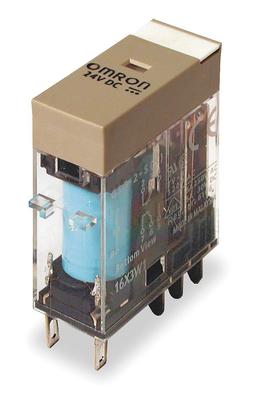

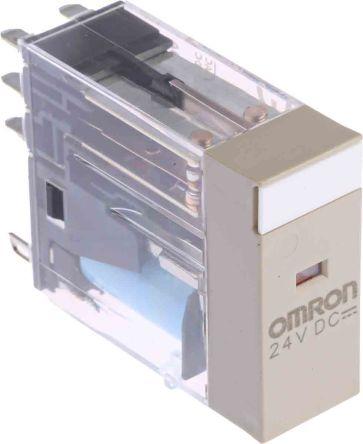

G2R-2-S DC24(S)
Manufacturer
Omron
Description
Electromechanical Relay 24VDC 1.113KOhm 5A DPDT(29x13x35.5)mm Plug-In General Purpose Relay
Datasheet
DownloadProduct Attributes
Type
Ambient Temperature Range High
Approvals
Case/Package
Coil Current
Coil Power
Coil Resistance
Coil Type
Coil Voltage (DC)
Contact Current Rating
Contact Material
Contact Resistance
Current Rating
Depth
Height
Insulation Resistance
Lead Free
Length
Max Current Rating
Max Operating Temperature
Max Voltage Rating (AC)
Max Voltage Rating (DC)
Min Operating Temperature
Mount
Number of Contacts
Number of Pins
Operate Time
Packaging
Power Consumption
Power Rating
Ratings
REACH SVHC
Relay Type
Release Time
RoHS
Schedule B
Switching Capacity
Switching Current
Termination
Throw Configuration
Turn-On Delay Time
Voltage Rating (AC)
Voltage Rating (DC)
Description
70 °C
CE, CSA, UL, VDE
125
21.6 mA
530 mW
1.113 kΩ
Non-Latching
24 V
5 A
Cadmium, Silver
100 mΩ
5 A
13 mm
35.5 mm
1 GΩ
Lead Free
29 mm
5 A
70 °C
380 V
125 V
-40 °C
Plug-In, Socket, Socketable
2
8
15 ms
Bulk
530 mW
500 mW
IP40
No SVHC
General Purpose
10 ms
Compliant
8536490050
1.25 kW
5 A
Plug
DPDT
15 ms
380 V
30 V
In Stock
Quantity
MOQ : 1
Minimum Qty : 1
Per Unit Price
₹967.67
Total Price
₹967.67
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹967.67
₹967.67
10
₹914.44
₹9144.37
25
₹846.72
₹21167.94
50
₹770.61
₹38530.44
100
₹738.91
₹73890.84
500
₹688.17
₹344084.20
1000
₹669.14
₹669140.24
