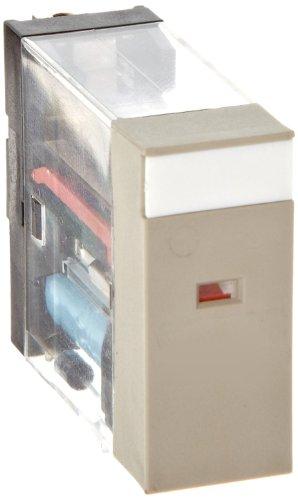

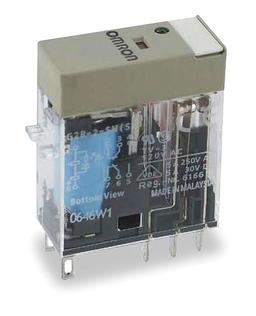

G2R2SNDC24S
Manufacturer
Omron
Description
Power/signal Relay SPDT Momentary 0.022A (coil) 24VDC (coil) 530MW (coil) 5A (contact) 125VDC (contact) Socket Mount
Datasheet
DownloadProduct Attributes
Type
Ambient Temperature Range High
Approvals
Coil Current
Coil Power
Coil Resistance
Coil Type
Coil Voltage (DC)
Contact Current Rating
Contact Material
Current Rating
Depth
Height
Lead Free
Length
Max Current Rating
Max Operating Temperature
Max Voltage Rating (AC)
Max Voltage Rating (DC)
Min Operating Temperature
Mount
Number of Contacts
Number of Pins
Operate Time
Packaging
Power Consumption
Power Rating
Ratings
REACH SVHC
Relay Type
Release Time
RoHS
Switching Capacity
Switching Current
Termination
Throw Configuration
Voltage Rating (AC)
Voltage Rating (DC)
Width
Description
70 °C
CE, CSA, UL, VDE
21.6 mA
530 mW
1.113 kΩ
Non-Latching
24 V
5 A
Cadmium, Silver
5 A
13 mm
35.5 mm
Lead Free
29 mm
5 A
70 °C
380 V
125 V
-40 °C
Plug-In, Socket, Socketable
2
8
15 ms
Bulk
360 mW
530 mW
IP40
Unknown
General Purpose
10 ms
Compliant
1.25 kW
5 A
Plug, Solder
DPDT
380 V
125 V
13 mm
₹1789.74
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
1
₹1789.74
₹1789.74
10
₹1642.97
₹16429.74
25
₹1642.97
₹41074.35
50
₹1605.66
₹80283.01
100
₹1484.94
₹148493.52
500
₹1464.44
₹732220.52
