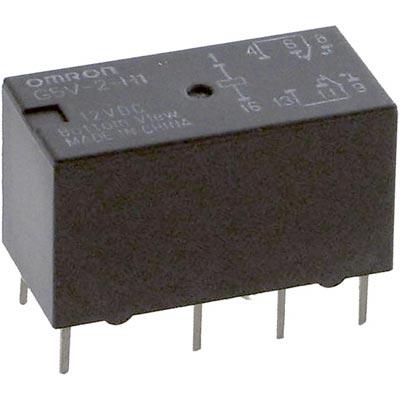

G5V-2-H1 DC12
Manufacturer
Omron
Description
Electromechanical Relay 12VDC 960Ohm 1A DPDT (20.5x10.1x11.5)mm THT Signal Relay
Datasheet
DownloadProduct Attributes
Type
Ambient Temperature Range High
Approvals
Case/Package
Coil Current
Coil Power
Coil Resistance
Coil Type
Coil Voltage (DC)
Contact Material
Current Rating
Depth
Height
Lead Free
Length
Max Current Rating
Max Operating Temperature
Max Voltage Rating (AC)
Max Voltage Rating (DC)
Min Operating Temperature
Mount
Number of Contacts
Number of Pins
Operate Time
Power Consumption
Power Rating
Radiation Hardening
REACH SVHC
Relay Type
Release Time
RoHS
Switching Current
Termination
Throw Configuration
Voltage Rating (AC)
Voltage Rating (DC)
Weight
Width
Description
70 °C
CSA, UL
DIP
12.5 mA
150 mW
960 Ω
Non-Latching
12 V
Silver
2 A
10.1 mm
11.5 mm
Lead Free
20.5 mm
1 A
70 °C
125 V
125 V
-25 °C
Through Hole
2
8
7 ms
150 mW
150 mW
No
No SVHC
General Purpose
3 ms
Compliant
1 A
PC Pin
DPDT
125 V
125 V
5 g
10.1 mm
In Stock
Quantity
MOQ : 1
Per Unit Price
₹308.55
Total Price
₹308.55
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹308.55
₹308.55
10
₹288.01
₹2880.12
25
₹254.92
₹6372.90
50
₹254.92
₹12745.79
100
₹235.71
₹23570.91
500
₹214.38
₹107190.39
1000
₹214.38
₹214379.90
