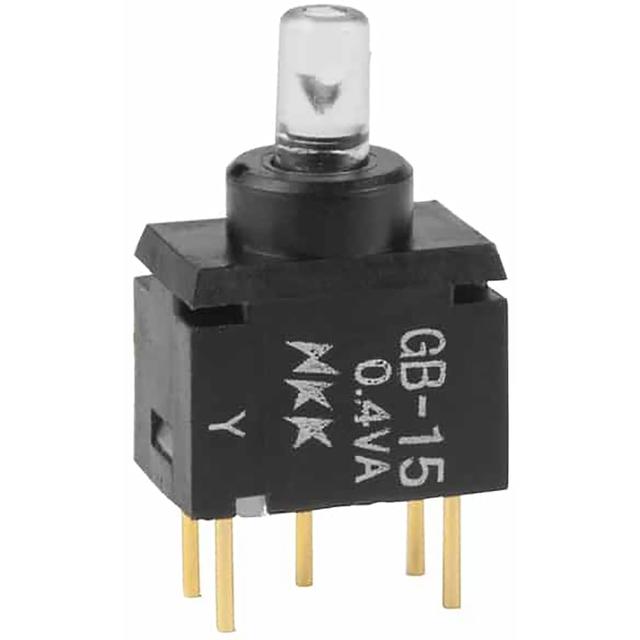

GB15JPD
Manufacturer
NKK Switches
Description
Switch; Toggle; SPDT; ON-(ON); Clear Act; Illum; Amber LED; 0.4A; 28VAC/DC; Str PC
Datasheet
DownloadProduct Attributes
Type
Actuator Material
Contact Current Rating
Contact Material
Contact Plating
Depth
Electrical Life
Housing Material
Illumination Color
Illumination Type
Lead Free
Length
Max Current Rating
Max Operating Temperature
Max Voltage Rating (AC)
Max Voltage Rating (DC)
Mechanical Life
Min Operating Temperature
Mount
Number of Positions
REACH SVHC
RoHS
Switch Function
Termination
Throw Configuration
Voltage Rating (AC)
Voltage Rating (DC)
Description
Polyamide
100 mA
Bronze
Gold
4.5 mm
50 kcycles
Polyamide
Orange
LED
Lead Free
7 mm
100 mA
55 °C
28 V
28 V
50 kcycles
-25 °C
Through Hole
2
No
Compliant
On-Mom
PC Pin
SPDT
28 V
28 V
₹925.98
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
1
₹925.98
₹925.98
10
₹866.47
₹8664.73
25
₹866.47
₹21661.83
50
₹866.47
₹43323.66
100
₹841.04
₹84104.05
500
₹866.47
₹433236.57
1000
₹866.47
₹866473.14
