GSIB2520-E3/45
Manufacturer
Vishay
Description

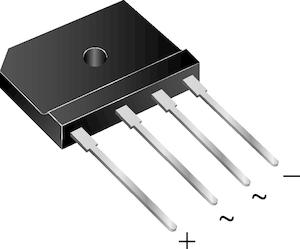

GSIB2520 Series 200 V 25 A Single-Phase Single In-Line Bridge Rectifier -GSIB-5S
Datasheet
DownloadProduct Attributes
Type
Average Rectified Current
Case/Package
China RoHS
Element Configuration
Forward Current
Forward Voltage
Height
Lead Free
Length
Lifecycle Status
Max Forward Surge Current (Ifsm)
Max Operating Temperature
Max Output Current
Max Repetitive Reverse Voltage (Vrrm)
Max Reverse Leakage Current
Max Surge Current
Min Breakdown Voltage
Min Operating Temperature
Mount
Number of Elements
Number of Pins
Number of Terminals
Peak Non-Repetitive Surge Current
Peak Reverse Current
Radiation Hardening
REACH SVHC
Reverse Standoff Voltage
RoHS
Description
25 A
SIP
Non-Compliant
Single
25 A
1 V
20 mm
Lead Free
30 mm
Production (Last Updated: 8 months ago)
350 A
150 °C
3.5 A
200 V
10 µA
350 A
200 V
-55 °C
Through Hole
4
4
4
350 A
10 µA
No
Unknown
200 V
Compliant
In Stock
Quantity
MOQ : 1
Per Unit Price
₹256.09
Total Price
₹256.09
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹256.09
₹256.09
10
₹155.08
₹1550.77
25
₹155.08
₹3876.91
50
₹153.19
₹7659.57
100
₹142.72
₹14271.66
500
₹142.72
₹71358.30
1000
₹164.39
₹164394.80
