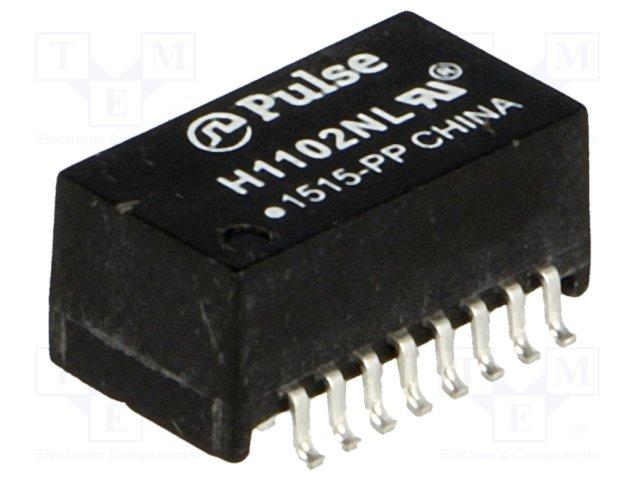

H1102NL
Manufacturer
Pulse Electronics
Description
Telecom Transformer 2(1: 1) 0.65Ohm Prim. DCR 0.65Ohm Sec. DCR 16 Terminal Gull Wing SMD
Datasheet
DownloadProduct Attributes
Type
Case/Package
DC Resistance (DCR)
Depth
Height
Height - Seated (Max)
Inductance
Insertion Loss (dB)
Isolation Voltage
Lead/Base Style
Lead Free
Length
Lifecycle Status
Max Operating Temperature
Min Operating Temperature
Mount
Number of Pins
Radiation Hardening
Return Loss
RoHS
Schedule B
Shielding
Termination
Turns Ratio
Weight
Width
Description
Module
650 mΩ
9.53 mm
6.1 mm
6.22 mm
350 µH
-1.1 dB
1.5 kV
Gull Wing
Lead Free
12.7 mm
Production (Last Updated: 4 years ago)
70 °C
0 °C
Surface Mount
16
No
-20 dB
Compliant
8504312000, 8504312000|8504312000, 8504312000|8504312000|8504312000, 8504312000|8504312000|8504312000|8504312000
Unshielded
SMD/SMT
1:1
2.799997 g
9.53 m
In Stock
Quantity
MOQ : 1
Per Unit Price
₹469.26
Total Price
₹469.26
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹469.26
₹469.26
10
₹325.27
₹3252.69
25
₹325.30
₹8132.62
50
₹325.30
₹16265.25
100
₹325.30
₹32530.49
500
₹325.30
₹162652.46
1000
₹305.04
₹305038.28
