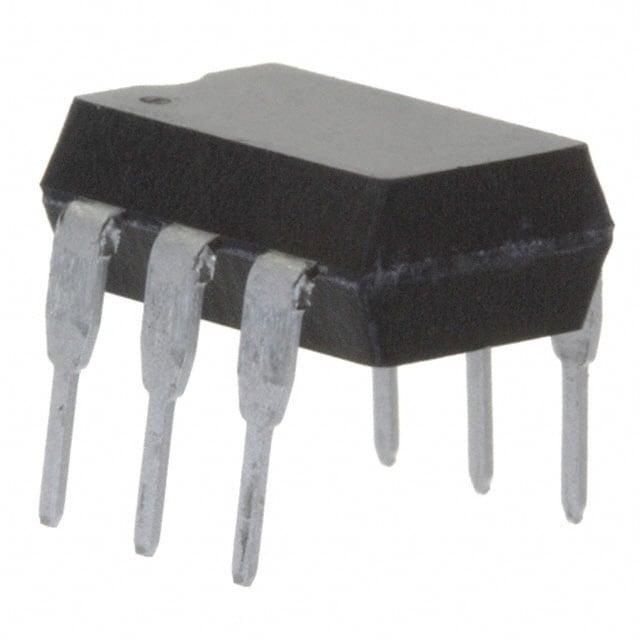

H11AA1
Manufacturer
Vishay Semiconductor Opto Division
Description
VISHAY - H11AA1 - Optocoupler, Transistor Output, 1 Channel, DIP, 6 Pins, 60 mA, 5.3 kV, 20 %
Datasheet
DownloadProduct Attributes
Type
Number of Channels
Isolation Voltage
Current Transfer Ratio
Input
Output Type
Max Output Voltage
Forward Voltage
Current - DC Forward (If) (Max)
Vce Saturation (Max)
Max Operating Temperature
Mounting Type
Case/Package
Packaging
Description
1
5300Vrms
20% @ 10mA
AC, DC
Transistor with Base
30V
1.2V
60 mA
400mV
-55°C ~ 100°C
Through Hole
6-DIP (0.300", 7.62mm)
6-DIP
₹104.31
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
1
₹104.31
₹104.31
10
₹93.89
₹938.91
25
₹90.50
₹2262.49
50
₹87.11
₹4355.40
100
₹56.77
₹5677.39
500
₹67.97
₹33986.40
1000
₹67.97
₹67972.80
Product Attributes
Type
Number of Channels
Isolation Voltage
Current Transfer Ratio
Input
Output Type
Max Output Voltage
Forward Voltage
Current - DC Forward (If) (Max)
Vce Saturation (Max)
Max Operating Temperature
Mounting Type
Case/Package
Packaging
Description
1
5300Vrms
20% @ 10mA
AC, DC
Transistor with Base
30V
1.2V
60 mA
400mV
-55°C ~ 100°C
Through Hole
6-DIP (0.300", 7.62mm)
6-DIP
