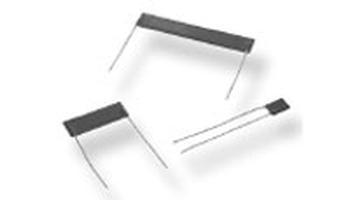

HBA22MFZRE
Manufacturer
TE Connectivity
Description
Fixed Resistor, Thick Film, 0.4W, 22000000Ohm, 1000V, 1% +/-Tol, -100, 100Ppm/Cel, Through Hole
Datasheet
DownloadProduct Attributes
Type
Case/Package
China RoHS
Composition
Contact Plating
Depth
ELV
Height
Lead Diameter
Lead Pitch
Length
Lifecycle Status
Manufacturer Lifecycle Status
Max Operating Temperature
Max Power Dissipation
Min Operating Temperature
Mount
Number of Resistors
Number of Terminals
Number of Terminations
Operating Supply Voltage
Packaging
Power Dissipation
Power Rating
REACH SVHC
Resistance
RoHS
Temperature Coefficient
Termination
Tolerance
Voltage Rating
Voltage Rating (DC)
Width
Working Voltage
Description
Radial
Non-Compliant
Thick Film
Tin
2.6 mm
Compliant
12.4968 mm
600 µm
5 mm
8 mm
Production (Last Updated: 4 days ago)
ACTIVE (Last Updated: 4 days ago)
125 °C
800 mW
-55 °C
Radial, Through Hole
1
2
2
1 kV
Bulk
400 mW
400 mW
Yes
22 MΩ
Compliant
100 ppm/°C
Radial
1 %
1 kV
1 kV
2.5908 mm
1 kV
In Stock
Quantity
MOQ : 1
Per Unit Price
₹465.94
Total Price
₹465.94
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹465.94
₹465.94
10
₹365.91
₹3659.08
25
₹365.91
₹9147.70
50
₹282.02
₹14101.00
100
₹262.39
₹26238.54
500
₹240.08
₹120037.95
