Manufacturer
Avago
Description

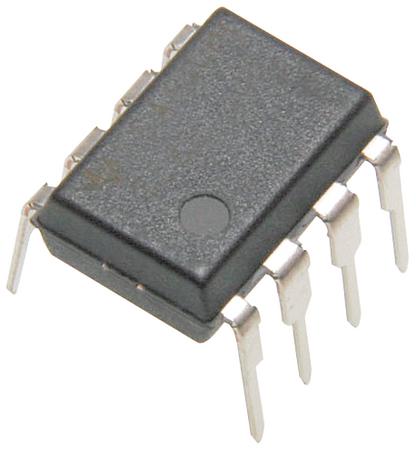

Optocoupler Logic-Out Totem-Pole DC-IN 1-CH 8-Pin PDIP Tube
Datasheet
Type
Ambient Temperature Range High
Approvals
Case/Package
China RoHS
Collector Emitter Breakdown Voltage
Contact Plating
Data Rate
Direction
Fall Time
Forward Current
Forward Voltage
Height
Input Current
Isolation Voltage
Lead Free
Lifecycle Status
Max Input Current
Max Junction Temperature (Tj)
Max Operating Temperature
Max Output Current
Max Output Voltage
Max Power Dissipation
Max Supply Voltage
Min Operating Temperature
Min Supply Voltage
Mount
Number of Channels
Number of Circuits
Number of Elements
Number of Pins
Operating Supply Voltage
Output Current
Output Current per Channel
Output Voltage
Power Dissipation
Propagation Delay
Radiation Hardening
REACH SVHC
Response Time
Reverse Breakdown Voltage
Rise Time
RoHS
Turn-On Delay Time
Description
85 °C
CSA, UL, VDE
DIP
Compliant
20 V
Tin
5 Mbps
Unidirectional
7 ns
10 mA
1.5 V
4.7 mm
5 mA
3.75 kV
Lead Free
Production (Last Updated: 7 months ago)
25 mA
125 °C
85 °C
25 mA
20 V
210 mW
20 V
-40 °C
4.5 V
Through Hole
1
1
1
8
5 V
25 mA
25 mA
20 V
210 mW
300 ns
No
Yes
30 ns
5 V
30 ns
Compliant
300 ns
MOQ : 1
Per Unit Price
₹416.15
Total Price
₹416.15
Ships in 7-10 days from Bengaluru
1
₹416.15
₹416.15
10
₹393.92
₹3939.16
25
₹393.92
₹9847.89
50
₹233.11
₹11655.63
100
₹216.93
₹21692.92
500
₹190.29
₹95144.40
1000
₹175.07
₹175065.70
