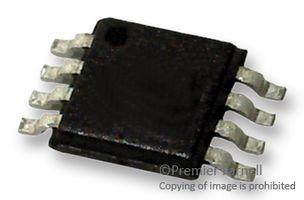

HCPL2631S
Manufacturer
onsemi
Description
Optocoupler Logic-Out Open Collector DC-IN 2-CH 8-Pin PDIP SMD Black Bulk
Datasheet
DownloadProduct Attributes
Type
Ambient Temperature Range High
Case/Package
Data Rate
Direction
Fall Time
Forward Current
Forward Voltage
Height
Input Current
Isolation Voltage
Lead Free
Length
Max Collector Current
Max Input Current
Max Operating Temperature
Max Output Current
Max Output Voltage
Max Power Dissipation
Max Supply Voltage
Min Operating Temperature
Min Supply Voltage
Mount
Number of Channels
Number of Circuits
Number of Elements
Number of Pins
Output Current
Output Current per Channel
Output Voltage
Polarity
Power Dissipation
Propagation Delay
Radiation Hardening
REACH SVHC
Reverse Breakdown Voltage
Reverse Voltage
Reverse Voltage (DC)
RoHS
Schedule B
Turn-Off Delay Time
Turn-On Delay Time
Weight
Width
Description
85 °C
SMD/SMT
10 Mbps
Unidirectional
12 ns
10 mA
1.4 V
5.08 mm
15 mA
2.5 kV
Lead Free
9.91 mm
50 mA
15 mA
85 °C
50 mA
7 V
60 mW
5.5 V
-40 °C
4.5 V
Surface Mount
2
2
2
8
50 mA
50 mA
7 V
Inverting
60 mW
75 ns
No
No SVHC
5 V
5 V
5 V
Compliant
8541408000, 8541408000|8541408000|8541408000|8541408000|8541408000
45 ns
45 ns
792 mg
6.86 mm
In Stock
Quantity
MOQ : Unavailable
Per Unit Price
₹Infinity
Total Price
₹Infinity
Ships in 7-10 days from Bengaluru
