HDP24-24-47PE-L017
Manufacturer
TE Connectivity / DEUTSCH
Description

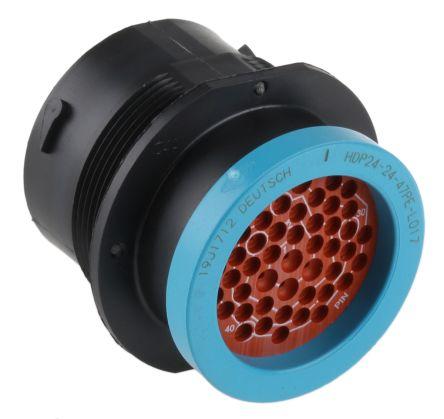

DEUTSCH HDP24-24-47PE-L017 Circular Connector, HDP20 Series, Jam Nut Receptacle, 47 Contacts
Datasheet
DownloadProduct Attributes
Type
Body Material
China RoHS
Color
Connector Type
Contact Gender
Contact Material
Contact Plating
Current Rating
Flammability Rating
Gender
Height
Housing Material
Hybrid Connector
Length
Lifecycle Status
Max Operating Temperature
Min Operating Temperature
Mount
Number of Contacts
Number of Pins
Number of Ports
Number of Positions
Orientation
Packaging
Polarized
Ratings
REACH SVHC
RoHS
Serviceable
Shielding
Termination
Voltage Rating
Width
Description
Thermoplastic
Compliant
Black
Circular
Male
Copper
Nickel
13 A
UL94 V-1
Receptacle
45.7708 mm
Thermoplastic
Yes
42.291 mm
Production (Last Updated: 8 months ago)
125 °C
-55 °C
Cable
47
47
1
47
Straight
Box
Yes
IP67
Yes
Compliant
Yes
No
Crimp
250 V
50.8 mm
In Stock
Quantity
MOQ : 1
Per Unit Price
₹1966.02
Total Price
₹1966.02
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹1966.02
₹1966.02
10
₹1795.03
₹17950.28
25
₹1795.05
₹44876.15
50
₹1558.25
₹77912.59
100
₹1518.79
₹151878.92
500
₹1578.63
₹789317.50
1000
₹1509.44
₹1509444.56
