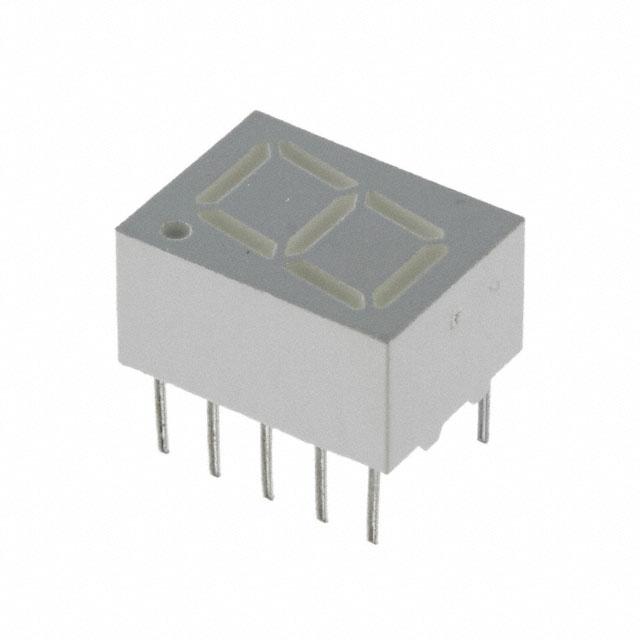

HDSP-301E
Manufacturer
Avago
Description
Displays Segmented Module 1DIGIT 8LED Hi-Eff. Red CA 10-Pin DIP Tube
Datasheet
DownloadProduct Attributes
Type
Case/Package
Color
Contact Plating
Depth
Dominant Wavelength
Element Configuration
Forward Current
Forward Voltage
Height
Illumination Color
Length
Lifecycle Status
Luminous Intensity
Max Operating Temperature
Max Power Dissipation
Min Operating Temperature
Mount
Number of Characters
Number of Elements
Number of Pins
Power Dissipation
Radiation Hardening
REACH SVHC
Reverse Voltage
RoHS
Test Current
Viewing Area (height)
Width
Description
DIP
Red
Tin
9.7 mm
625 nm
Common Anode
30 mA
2.5 V
12.8016 mm
Orange
12.8 mm
Production (Last Updated: 7 months ago)
1.8 mcd
80 °C
105 mW
-40 °C
Through Hole
1
8
10
105 mW
No
Yes
5 V
Compliant
10 mA
10 mm
9.7028 mm
In Stock
Quantity
MOQ : 1
Per Unit Price
₹171.06
Total Price
₹171.06
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹171.06
₹171.06
10
₹109.85
₹1098.47
25
₹99.20
₹2479.91
50
₹88.54
₹4427.24
100
₹77.89
₹7789.35
500
₹65.97
₹32985.43
1000
₹68.69
₹68686.25
Product Attributes
Type
Case/Package
Color
Contact Plating
Depth
Dominant Wavelength
Element Configuration
Forward Current
Forward Voltage
Height
Illumination Color
Length
Lifecycle Status
Luminous Intensity
Max Operating Temperature
Max Power Dissipation
Min Operating Temperature
Mount
Number of Characters
Number of Elements
Number of Pins
Power Dissipation
Radiation Hardening
REACH SVHC
Reverse Voltage
RoHS
Test Current
Viewing Area (height)
Width
Description
DIP
Red
Tin
9.7 mm
625 nm
Common Anode
30 mA
2.5 V
12.8016 mm
Orange
12.8 mm
Production (Last Updated: 7 months ago)
1.8 mcd
80 °C
105 mW
-40 °C
Through Hole
1
8
10
105 mW
No
Yes
5 V
Compliant
10 mA
10 mm
9.7028 mm
