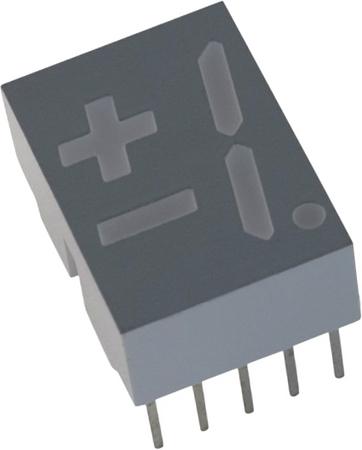

HDSP-5507
Manufacturer
Avago
Description
Smart/Normal 7 Seg Numeric LED Display, High Efficiency Red, 14.2mm
Datasheet
DownloadProduct Attributes
Type
Case/Package
Character Height
China RoHS
Color
Depth
Dominant Wavelength
Element Configuration
Forward Current
Forward Voltage
Height
Illumination Color
Length
Lifecycle Status
Max Operating Temperature
Max Power Dissipation
Min Operating Temperature
Mount
Number of Elements
Number of Pins
Number of Positions
Operating Supply Voltage
Peak Wavelength
Power Consumption
Power Dissipation
REACH SVHC
Reverse Voltage
RoHS
Test Current
Wavelength
Description
DIP
14.22 mm
Compliant
Red
17.02 mm
626 nm
Common Anode
30 mA
2.5 V
17.018 mm
Red
12.57 mm
EOL (Last Updated: 7 months ago)
100 °C
105 mW
-40 °C
Through Hole
6
10
1
2.1 V
635 nm
105 mW
105 mW
Yes
30 V
Compliant
20 mA
626 nm
Out of Stock
Quantity
MOQ : Unavailable
Per Unit Price
Unavailable
Total Price
Unavailable
Ships in 7-10 days from Bengaluru
