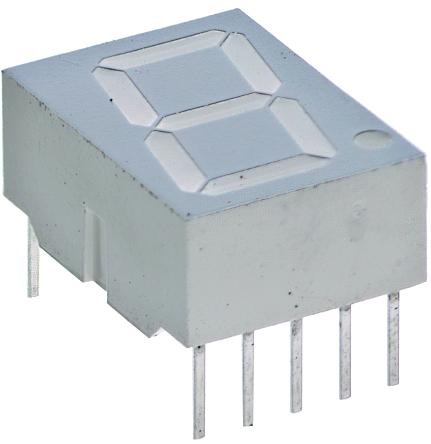

HDSP-H103
Manufacturer
Avago
Description
Smart/Normal 7 Seg Numeric LED Display, 1-Character, Red, 14.2mm
Datasheet
DownloadProduct Attributes
Type
Case/Package
Character Height
Character Width
China RoHS
Color
Depth
Dominant Wavelength
Element Configuration
Forward Current
Height
Illumination Color
Lead Free
Length
Lifecycle Status
Luminous Intensity
Max Operating Temperature
Max Power Dissipation
Min Operating Temperature
Mount
Number of Characters
Number of Circuits
Number of Elements
Number of Pins
Number of Positions
Number of Segments
Operating Supply Voltage
Peak Wavelength
Power Dissipation
Radiation Hardening
REACH SVHC
Reverse Voltage
RoHS
Test Current
Viewing Area (height)
Width
Description
DIP
14.22 mm
7.8 mm
Compliant
Red
17.02 mm
637 nm
Common Cathode
15 mA
17.018 mm
Red
Lead Free
12.57 mm
Production (Last Updated: 7 months ago)
4.2 mcd
100 °C
37 mW
-20 °C
Through Hole
1
1
8
10
1
7
1.7 V
645 nm
37 mW
No
Yes
15 V
Compliant
5 mA
14.22 mm
12.573 mm
In Stock
Quantity
MOQ : 1
Per Unit Price
₹446.76
Total Price
₹446.76
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹446.76
₹446.76
10
₹360.19
₹3601.94
25
₹267.39
₹6684.83
50
₹254.46
₹12722.84
100
₹241.51
₹24150.97
500
₹219.69
₹109846.20
1000
₹205.40
₹205403.42
