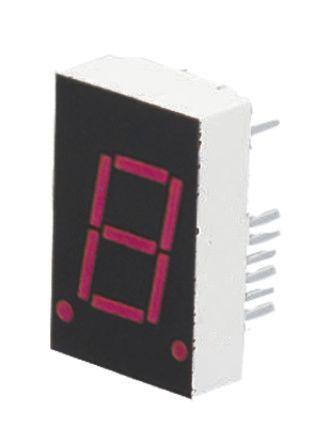

HDSP-N151
Manufacturer
Avago
Description
Smart/Normal 7 Seg Numeric LED Display, 1-Character, Red, 20.32mm
Datasheet
DownloadProduct Attributes
Type
Case/Package
Character Height
Character Width
China RoHS
Color
Depth
Dominant Wavelength
Element Configuration
Forward Current
Forward Voltage
Height
Illumination Color
Lead Free
Length
Lifecycle Status
Luminous Intensity
Max Operating Temperature
Max Power Dissipation
Min Operating Temperature
Mount
Number of Characters
Number of Circuits
Number of Elements
Number of Pins
Number of Segments
Operating Supply Voltage
Packaging
Peak Wavelength
Power Consumption
Power Dissipation
REACH SVHC
Reverse Voltage
RoHS
Test Current
Viewing Area (height)
Wavelength
Width
Description
DIP
20.32 mm
11.07 mm
Compliant
Red
18.6 mm
637 nm
Common Anode
40 mA
3 V
27.686 mm
Red
Lead Free
25 mm
Production (Last Updated: 7 months ago)
14 mcd
100 °C
96 mW
-20 °C
Through Hole
1
1
8
18
7
1.8 V
Rail/Tube
645 nm
96 mW
96 mW
Yes
15 V
Compliant
20 mA
20.32 mm
637 nm
19.9644 mm
In Stock
Quantity
MOQ : 1
Per Unit Price
₹770.05
Total Price
₹770.05
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹770.05
₹770.05
10
₹553.35
₹5533.49
25
₹553.37
₹13834.17
50
₹531.87
₹26593.30
100
₹531.86
₹53185.72
500
₹435.70
₹217849.11
1000
₹375.82
₹375820.38
