HSC25022RJ
Manufacturer
TE Connectivity
Description

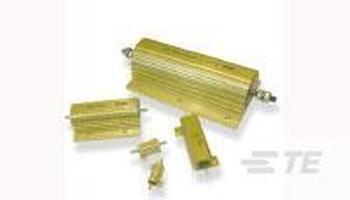

Res Wirewound 22 Ohm 5% 250W 50ppm/C Aluminum Housed AXL Flange Mount Loose/Tray
Datasheet
DownloadProduct Attributes
Type
Case/Package
China RoHS
Composition
Depth
ELV
Height
Hole Diameter
Housing Material
Insulation Resistance
Lead/Base Style
Length
Lifecycle Status
Manufacturer Lifecycle Status
Max Operating Temperature
Max Power Dissipation
Min Operating Temperature
Mount
Number of Pins
Number of Resistors
Number of Terminals
Number of Terminations
Operating Supply Voltage
Packaging
Power Dissipation
Power Rating
Radiation Hardening
REACH SVHC
Resistance
RoHS
Temperature Coefficient
Termination
Tolerance
Voltage Rating
Voltage Rating (AC)
Voltage Rating (DC)
Width
Working Voltage
Description
Aluminum
Compliant
Power resistor, Wirewound
73 mm
Compliant
42 mm
5.3 mm
Aluminium
10 GΩ
Screw
163 mm
Production (Last Updated: 4 days ago)
ACTIVE (Last Updated: 4 days ago)
250 °C
250 W
-25 °C
Chassis Mount
2
1
2
2
2.2 kV
Bulk
250 W
250 W
No
Yes
22 Ω
Compliant
50 ppm/°C
Axial, Stud
5 %
2.2 kV
2.2 kV
2.2 kV
73 mm
2.2 kV
In Stock
Quantity
MOQ : 1
Per Unit Price
₹5616.19
Total Price
₹5616.19
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹5616.19
₹5616.19
10
₹4084.54
₹40845.40
25
₹4084.56
₹102113.95
