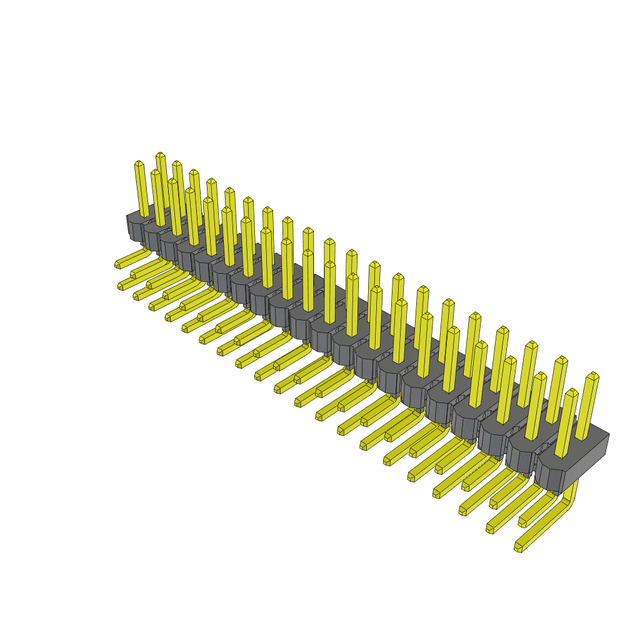

HTSW-120-08-G-D-RA
Manufacturer
Samtec
Description
Pin Header, Right Angle, Board-to-Board, 2.54 mm, 2 Rows, 40 Contacts, Through Hole Right Angle
Datasheet
DownloadProduct Attributes
Type
Contact Material
Contact Plating
Depth
Gender
Housing Color
Housing Material
Lead Pitch
Length
Lifecycle Status
Manufacturer Lifecycle Status
Max Current Rating
Max Operating Temperature
Max Voltage Rating (AC)
Min Operating Temperature
Number of Contacts
Number of Rows
Orientation
Pitch
REACH SVHC
RoHS
Termination
Description
Bronze
Gold
12.44 mm
Male
Natural
Polymer
2.54 mm
50.8 mm
Production (Last Updated: 3 years ago)
PRODUCTION (Last Updated: 3 years ago)
7.6 A
125 °C
450 V
-55 °C
40
2
Right Angle
2.54 mm
No
Compliant
Solder
In Stock
Quantity
MOQ : Unavailable
Per Unit Price
₹Infinity
Total Price
₹Infinity
Ships in 7-10 days from Bengaluru
