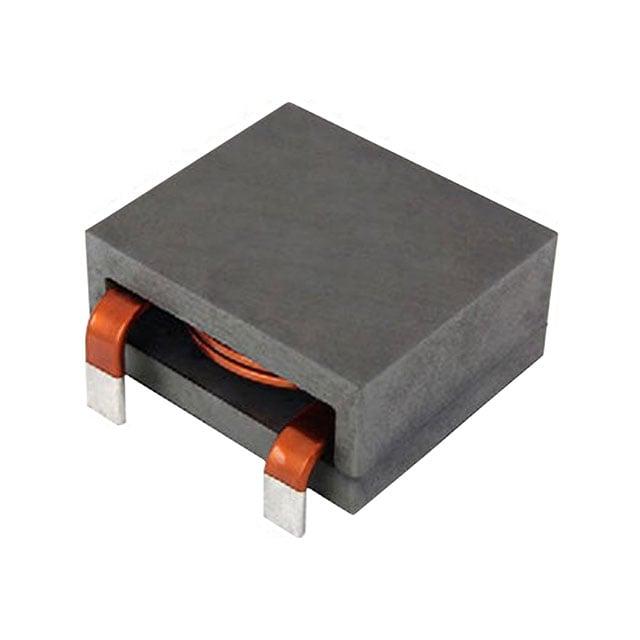

IHDF1300AEEH3R3K1A
Manufacturer
Vishay Dale
Description
3.3 H Unshielded Drum Core, Wirewound Inductor 59 A 1.11mOhm Max Nonstandard
Datasheet
DownloadProduct Attributes
Type
Type
Core Material
Inductance
Tolerance
Current Rating (Amps)
Saturation Current
Shielding
DC Resistance (DCR)
Frequency - Self Resonant
Ratings
Max Operating Temperature
Inductance Frequency - Test
Mounting Type
Case/Package
Size / Dimension
Height - Seated (Max)
Description
Drum Core, Wirewound
Ferrite
3.3 µH
±10%
59 A
112A
Unshielded
1.11mOhm Max
18MHz
AEC-Q200
-55°C ~ 155°C
100 kHz
Through Hole
Nonstandard
1.299" L x 1.173" W (33.00mm x 29.80mm)
0.606" (15.40mm)
₹1062.32
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
1
₹1062.32
₹1062.32
10
₹873.83
₹8738.25
25
₹830.97
₹20774.22
50
₹783.81
₹39190.63
100
₹737.94
₹73793.66
Product Attributes
Type
Type
Core Material
Inductance
Tolerance
Current Rating (Amps)
Saturation Current
Shielding
DC Resistance (DCR)
Frequency - Self Resonant
Ratings
Max Operating Temperature
Inductance Frequency - Test
Mounting Type
Case/Package
Size / Dimension
Height - Seated (Max)
Description
Drum Core, Wirewound
Ferrite
3.3 µH
±10%
59 A
112A
Unshielded
1.11mOhm Max
18MHz
AEC-Q200
-55°C ~ 155°C
100 kHz
Through Hole
Nonstandard
1.299" L x 1.173" W (33.00mm x 29.80mm)
0.606" (15.40mm)
