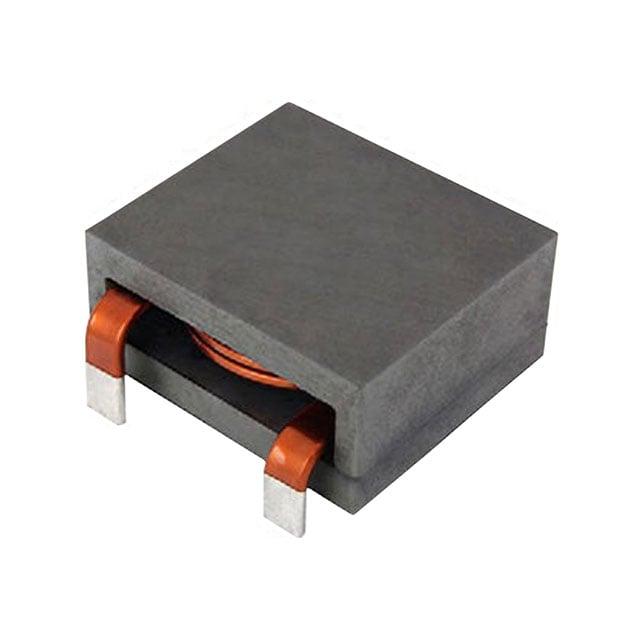

IHDF1300AEEH5R0K1A
Manufacturer
Vishay Dale
Description
VISHAY - IHDF1300AEEH5R0K1A - Power Inductor, 5 H, 10%, 0.00111 ohm, 59 A Irms, 78 A Isat, Unshielded, IHDF-1300AE-10 Series
Datasheet
DownloadProduct Attributes
Type
Type
Core Material
Inductance
Tolerance
Current Rating (Amps)
Saturation Current
Shielding
DC Resistance (DCR)
Frequency - Self Resonant
Ratings
Max Operating Temperature
Inductance Frequency - Test
Mounting Type
Case/Package
Size / Dimension
Height - Seated (Max)
Description
Drum Core, Wirewound
Ferrite
5 µH
±10%
59 A
78A
Unshielded
1.11mOhm Max
15MHz
AEC-Q200
-55°C ~ 155°C
100 kHz
Through Hole
Nonstandard
1.299" L x 1.173" W (33.00mm x 29.80mm)
0.606" (15.40mm)
₹1122.70
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
1
₹1122.70
₹1122.70
10
₹923.14
₹9231.43
25
₹876.86
₹21921.45
50
₹827.14
₹41357.02
100
₹779.98
₹77998.40
500
₹692.05
₹346023.67
