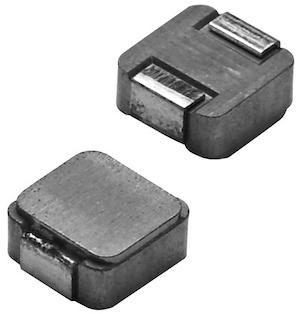

IHLP1616BZERR47M11
Manufacturer
Vishay
Description
Inductor Power Shielded Wirewound 470nH 20% 100KHz Powdered Iron 7A 16mOhm DCR 1616 T/R
Datasheet
DownloadProduct Attributes
Type
Case/Package
Case Code (Imperial)
Case Code (Metric)
China RoHS
Composition
Core Material
DC Resistance (DCR)
Depth
Height
Height - Seated (Max)
Inductance
Inductance Tolerance
Lead Free
Lifecycle Status
Max Current Rating
Max DC Current
Max Operating Temperature
Military Standard
Min Operating Temperature
Mount
Number of Circuits
Number of Pins
Number of Terminals
Radiation Hardening
REACH SVHC
Resistance
RMS Current (Irms)
RoHS
Saturation Current
Schedule B
Self Resonant Frequency
Series Resistance
Shielding
Termination
Test Frequency
Tolerance
Width
Description
1616
1616
4040
Compliant
Wirewound
Composite
16 mΩ
4.31 mm
2 mm
2.0066 mm
470 nH
20 %
Lead Free
Production (Last Updated: 7 months ago)
7 A
7 A
125 °C
Not
-55 °C
Surface Mount
1
2
2
No
Yes
14.5 mΩ
7 A
Compliant
7 A
8504500000, 8504500000|8504500000, 8504500000|8504500000|8504500000, 8504500000|8504500000|8504500000|8504500000
97 MHz
16 mΩ
Yes
SMD/SMT
100 kHz
20 %
4.06 mm
In Stock
Quantity
MOQ : Unavailable
Per Unit Price
₹Infinity
Total Price
₹Infinity
Ships in 7-10 days from Bengaluru
