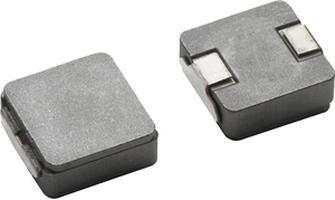

IHLP4040DZER3R3M01
Manufacturer
Vishay
Description
Inductor High Current Shielded Wirewound 3.3uH 20% 100KHz 10A 11.8mOhm DCR 4040 T/R
Datasheet
DownloadProduct Attributes
Type
Case/Package
Case Code (Imperial)
Composition
Contact Plating
Core Material
Current Rating
DC Resistance (DCR)
Depth
Height
Height - Seated (Max)
Inductance
Inductance Tolerance
Lead Free
Max DC Current
Max Operating Temperature
Military Standard
Min Operating Temperature
Mount
Radiation Hardening
Resistance
RMS Current (Irms)
RoHS
Saturation Current
Schedule B
Self Resonant Frequency
Series Resistance
Shielding
Termination
Test Frequency
Tolerance
Weight
Width
Description
4040
4040
Wirewound
Tin
Composite, Ferrite, Metal
10 A
14.4 mΩ
10.3 mm
4 mm
3.9878 mm
3.3 µH
20 %
Lead Free
18.6 A
125 °C
Not
-55 °C
Surface Mount
No
13.7 mΩ
10 A
Compliant
18.6 A
8504500000, 8504500000|8504500000|8504500000|8504500000|8504500000
5 MHz
14.4 mΩ
Shielded
SMD/SMT
100 kHz
20 %
2.000002 g
10.287 mm
In Stock
Quantity
MOQ : 1
Minimum Qty : 1
Per Unit Price
₹105.86
Total Price
₹105.86
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹105.86
₹105.86
10
₹74.85
₹748.47
25
₹74.85
₹1871.16
50
₹68.80
₹3440.05
100
₹62.74
₹6274.48
500
₹62.45
₹31227.23
1000
₹51.16
₹51162.31
