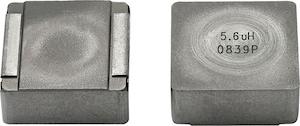

IHLP6767GZER5R6M01
Manufacturer
Vishay
Description
Inductor Power Shielded Wirewound 5.6uH 20% 100KHz Powdered Iron 21A 7.05mOhm DCR 6767 T/R
Datasheet
DownloadProduct Attributes
Type
Case/Package
Composition
Contact Plating
Core Material
Current Rating
DC Resistance (DCR)
Depth
Height
Height - Seated (Max)
Inductance
Inductance Tolerance
Lead Free
Max DC Current
Max Operating Temperature
Military Standard
Min Operating Temperature
Mount
Radiation Hardening
REACH SVHC
Resistance
RMS Current (Irms)
RoHS
Saturation Current
Schedule B
Series Resistance
Shielding
Termination
Test Frequency
Tolerance
Width
Description
6767
Wirewound
Tin
Composite, Ferrite, Metal
21 A
7.05 mΩ
17.15 mm
7 mm
7.0104 mm
5.6 µH
20 %
Lead Free
40 A
125 °C
Not
-55 °C
Surface Mount
No
Unknown
6.68 mΩ
21 A
Compliant
40 A
8504500000, 8504500000|8504500000, 8504500000|8504500000|8504500000, 8504500000|8504500000|8504500000|8504500000
7.05 mΩ
Shielded
SMD/SMT
100 kHz
20 %
17.15 mm
In Stock
Quantity
MOQ : 1
Per Unit Price
₹323.67
Total Price
₹323.67
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹323.67
₹323.67
10
₹227.19
₹2271.91
25
₹227.17
₹5679.32
50
₹227.19
₹11359.53
100
₹214.38
₹21437.72
500
₹214.38
₹107190.39
