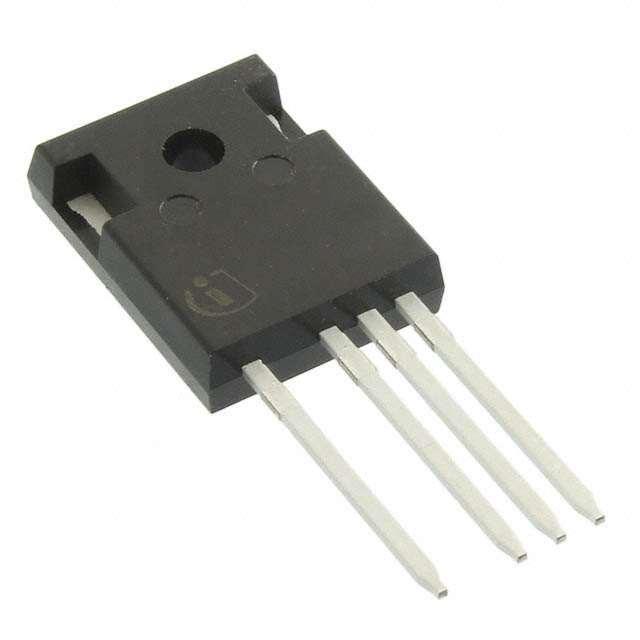

IKY40N120CH3XKSA1
Manufacturer
Infineon
Description
1200 V, 40 A IGBT with anti-parallel diode in TO-247PLUS package, PG-TO247-4, RoHS
Datasheet
DownloadProduct Attributes
Type
Collector Emitter Breakdown Voltage
Collector Emitter Saturation Voltage
Collector Emitter Voltage (VCEO)
Continuous Collector Current
Height
Lifecycle Status
Max Collector Current
Max Junction Temperature (Tj)
Max Operating Temperature
Min Operating Temperature
Number of Elements
Number of Terminals
Package Quantity
Power Dissipation
REACH SVHC
RoHS
Turn-Off Delay Time
Turn-On Delay Time
Description
1.2 kV
2 V
1.2 kV
80 A
25.25 mm
Production (Last Updated: 7 months ago)
80 A
175 °C
175 °C
-40 °C
1
4
240
500 W
Yes
Compliant
280 ns
30 ns
In Stock
Quantity
MOQ : 1
Per Unit Price
₹833.18
Total Price
₹833.18
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹833.18
₹833.18
10
₹802.06
₹8020.58
25
₹549.28
₹13731.92
50
₹549.29
₹27464.72
100
₹473.55
₹47355.24
Product Attributes
Type
Collector Emitter Breakdown Voltage
Collector Emitter Saturation Voltage
Collector Emitter Voltage (VCEO)
Continuous Collector Current
Height
Lifecycle Status
Max Collector Current
Max Junction Temperature (Tj)
Max Operating Temperature
Min Operating Temperature
Number of Elements
Number of Terminals
Package Quantity
Power Dissipation
REACH SVHC
RoHS
Turn-Off Delay Time
Turn-On Delay Time
Description
1.2 kV
2 V
1.2 kV
80 A
25.25 mm
Production (Last Updated: 7 months ago)
80 A
175 °C
175 °C
-40 °C
1
4
240
500 W
Yes
Compliant
280 ns
30 ns
