ILD55
Manufacturer
Vishay
Description

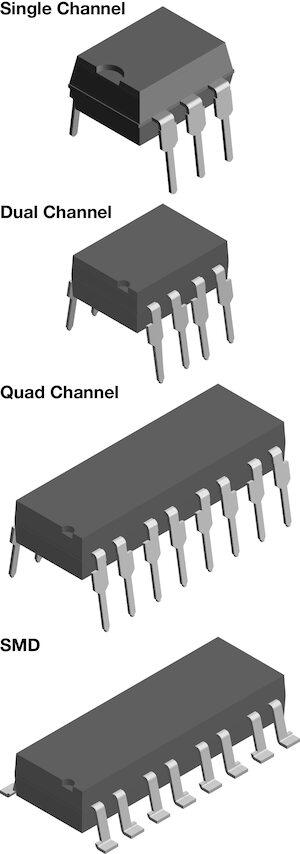

ILD55 Series Dual Channel 55 V 5300 Vrms Photodarlington Optocoupler - DIP-8
Datasheet
DownloadProduct Attributes
Type
Approvals
Case/Package
Collector Emitter Saturation Voltage
Collector Emitter Voltage (VCEO)
Current Transfer Ratio
Fall Time
Forward Current
Forward Voltage
Input Current
Isolation Voltage
Lead Free
Max Collector Current
Max Input Current
Max Operating Temperature
Max Output Voltage
Max Power Dissipation
Min Operating Temperature
Mount
Number of Channels
Number of Elements
Number of Pins
Output Current per Channel
Output Voltage
Power Dissipation
Radiation Hardening
REACH SVHC
Reverse Breakdown Voltage
Rise Time
RoHS
Voltage Rating (DC)
Description
BSI, FIMKO, UL, VDE
PDIP
1 V
55 V
400 %
35 µs
60 mA
1.5 V
60 mA
5.3 kV
Lead Free
125 mA
60 mA
100 °C
55 V
400 mW
-55 °C
Through Hole
2
2
8
125 mA
55 V
400 mW
No
Unknown
3 V
10 µs
Compliant
1.25 V
In Stock
Quantity
MOQ : 1
Minimum Qty : 1
Per Unit Price
₹233.36
Total Price
₹233.36
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹233.36
₹233.36
10
₹202.25
₹2022.51
25
₹171.14
₹4278.40
50
₹140.02
₹7001.01
100
₹130.49
₹13048.65
500
₹127.89
₹63943.20
1000
₹127.89
₹127886.40
Product Attributes
Type
Approvals
Case/Package
Collector Emitter Saturation Voltage
Collector Emitter Voltage (VCEO)
Current Transfer Ratio
Fall Time
Forward Current
Forward Voltage
Input Current
Isolation Voltage
Lead Free
Max Collector Current
Max Input Current
Max Operating Temperature
Max Output Voltage
Max Power Dissipation
Min Operating Temperature
Mount
Number of Channels
Number of Elements
Number of Pins
Output Current per Channel
Output Voltage
Power Dissipation
Radiation Hardening
REACH SVHC
Reverse Breakdown Voltage
Rise Time
RoHS
Voltage Rating (DC)
Description
BSI, FIMKO, UL, VDE
PDIP
1 V
55 V
400 %
35 µs
60 mA
1.5 V
60 mA
5.3 kV
Lead Free
125 mA
60 mA
100 °C
55 V
400 mW
-55 °C
Through Hole
2
2
8
125 mA
55 V
400 mW
No
Unknown
3 V
10 µs
Compliant
1.25 V
