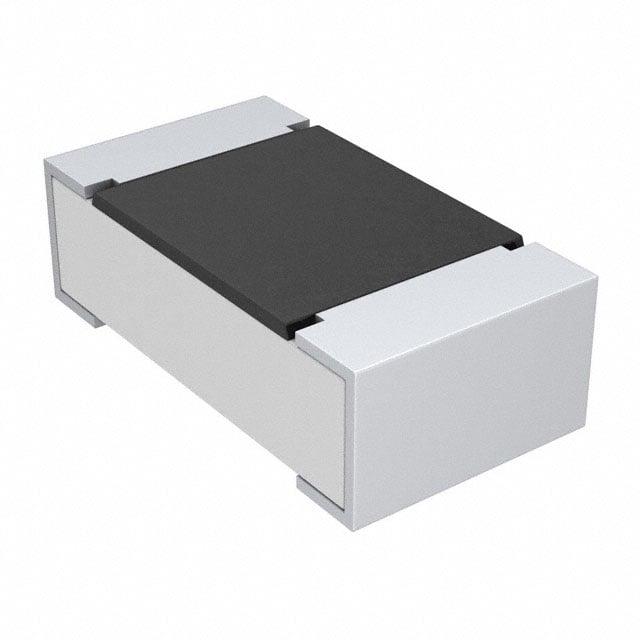

ILSB0603ER6R8K
Manufacturer
Vishay Dale
Description
6.8 H Shielded Multilayer Inductor 15 mA 1.7Ohm Max 0603 (1608 Metric)
Datasheet
DownloadProduct Attributes
Type
Type
Core Material
Inductance
Tolerance
Current Rating (Amps)
Shielding
DC Resistance (DCR)
Q @ Freq
Frequency - Self Resonant
Max Operating Temperature
Inductance Frequency - Test
Mounting Type
Case/Package
Packaging
Size / Dimension
Height - Seated (Max)
Description
Multilayer
Ferrite
6.8 µH
±10%
15 mA
Shielded
1.7Ohm Max
30 @ 4MHz
20MHz
-55°C ~ 125°C
4 MHz
Surface Mount
0603 (1608 Metric)
0603 (1608 Metric)
0.063" L x 0.031" W (1.60mm x 0.80mm)
0.039" (1.00mm)
₹22.95
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
10
₹18.61
₹186.09
25
₹17.21
₹430.21
50
₹17.21
₹860.43
100
₹13.63
₹1363.34
500
₹12.62
₹6309.77
1000
₹10.58
₹10578.54
Product Attributes
Type
Type
Core Material
Inductance
Tolerance
Current Rating (Amps)
Shielding
DC Resistance (DCR)
Q @ Freq
Frequency - Self Resonant
Max Operating Temperature
Inductance Frequency - Test
Mounting Type
Case/Package
Packaging
Size / Dimension
Height - Seated (Max)
Description
Multilayer
Ferrite
6.8 µH
±10%
15 mA
Shielded
1.7Ohm Max
30 @ 4MHz
20MHz
-55°C ~ 125°C
4 MHz
Surface Mount
0603 (1608 Metric)
0603 (1608 Metric)
0.063" L x 0.031" W (1.60mm x 0.80mm)
0.039" (1.00mm)
