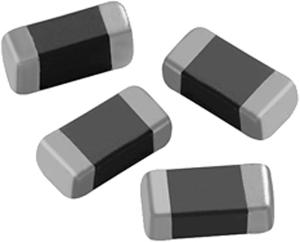

ILSB1206ER100K
Manufacturer
Vishay
Description
Ind Chip Shielded Multi-Layer 10uH 10% 2MHz 45Q-Factor 25mA 1206 T/R
Datasheet
DownloadProduct Attributes
Type
Case/Package
Case Code (Imperial)
Case Code (Metric)
Core Material
Current Rating
DC Current
DC Resistance (DCR)
Depth
Height
Height - Seated (Max)
Inductance
Inductance Tolerance
Lead Free
Length
Max DC Current
Max Operating Temperature
Military Standard
Min Operating Temperature
Mount
Number of Pins
Packaging
Q Factor
Radiation Hardening
REACH SVHC
RoHS
Schedule B
Self Resonant Frequency
Shielding
Termination
Test Frequency
Tolerance
Width
Description
1206
1206
3216
Ferrite
25 mA
25 mA
1 Ω
1.8 mm
508 µm
1.397 mm
10 µH
10 %
Lead Free
3.2004 mm
25 mA
125 °C
Not
-55 °C
Surface Mount
1206
Cut Tape
45
No
Unknown
Compliant
8504500000, 8504500000|8504500000|8504500000|8504500000|8504500000
28 MHz
Shielded
SMD/SMT
2 MHz
10 %
1.6002 mm
₹15.98
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
10
₹13.63
₹136.34
25
₹13.62
₹340.38
50
₹13.21
₹660.31
100
₹11.23
₹1122.70
500
₹10.02
₹5007.79
1000
₹9.23
₹9231.43
