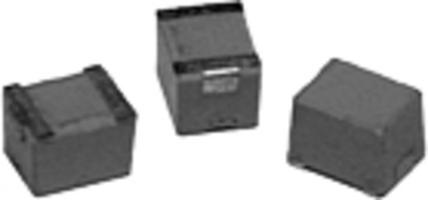

IMC1210ER101K
Manufacturer
Vishay
Description
Inductor Chip Molded Wirewound 100uH 10% 796KHz 20Q-Factor Powdered Iron 73mA 14Ohm DCR 1210 T/R
Datasheet
DownloadProduct Attributes
Type
Case/Package
Case Code (Imperial)
Case Code (Metric)
Composition
Core Material
Current
Current Rating
DC Current
DC Resistance (DCR)
Depth
Height
Height - Seated (Max)
Inductance
Inductance Tolerance
Lead Free
Length
Max DC Current
Max Operating Temperature
Military Standard
Min Operating Temperature
Mount
Packaging
Q Factor
Radiation Hardening
REACH SVHC
RoHS
Schedule B
Self Resonant Frequency
Shielding
Termination
Test Frequency
Tolerance
Width
Description
1210
1210
3225
Wirewound
Ceramic, Ferrite
112 mA
73 mA
73 mA
14 Ω
2.69 mm
2.21 mm
2.413 mm
100 µH
10 %
Lead Free
3.4 mm
73 mA
125 °C
Not
-55 °C
Surface Mount
Tape and Reel
20
No
Unknown
Compliant
8504500000, 8504500000|8504500000|8504500000|8504500000|8504500000
9 MHz
Unshielded
SMD/SMT
796 kHz
10 %
2.4892 mm
In Stock
Quantity
MOQ : 2
Minimum Qty : 2
Per Unit Price
₹75.87
Total Price
₹151.74
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹153.50
₹153.50
10
₹62.55
₹625.48
25
₹62.55
₹1563.70
50
₹62.55
₹3127.40
100
₹51.43
₹5143.23
500
₹51.44
₹25718.78
1000
₹42.31
₹42308.55
