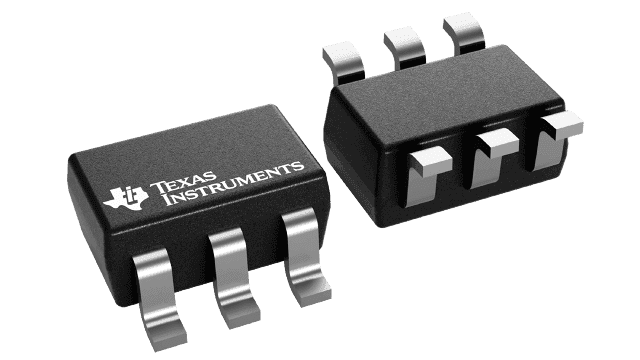

INA199A1DCKR
Manufacturer
Texas Instruments
Description
26V, bi-directional current sense amplifier 6-SC70 -40 to 125
Datasheet
DownloadProduct Attributes
Type
Accuracy
Ambient Temperature Range High
Bandwidth
Case/Package
Common Mode Rejection Ratio
Contact Plating
Gain Bandwidth Product
Height
Input Bias Current
Input Offset Voltage (Vos)
Lead Free
Length
Lifecycle Status
Manufacturer Lifecycle Status
Max Junction Temperature (Tj)
Max Operating Temperature
Max Supply Voltage
Min Operating Temperature
Min Supply Voltage
Mount
Nominal Supply Current
Number of Amplifiers
Number of Channels
Number of Circuits
Number of Elements
Number of Pins
Operating Supply Current
Output Type
Power Supply Rejection Ratio (PSRR)
Radiation Hardening
REACH SVHC
RoHS
Schedule B
Slew Rate
Thickness
Voltage Gain
Weight
Width
Description
1.5 %
125 °C
80 kHz
SC
100 dB
Gold
14 kHz
1.1 mm
28 µA
5 µV
Lead Free
2 mm
Production (Last Updated: 5 days ago)
ACTIVE (Last Updated: 5 days ago)
150 °C
125 °C
26 V
-40 °C
2.5 V
Surface Mount
65 µA
1
1
1
1
6
65 µA
Voltage
140 dB
No
No
Compliant
8542330000, 8542330000|8542330000|8542330000|8542330000|8542330000
0.4 V/µs
900 µm
33.98 dB
36.003894 mg
1.25 mm
In Stock
Quantity
MOQ : 3
Per Unit Price
₹41.79
Total Price
₹125.38
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹125.38
₹125.38
10
₹29.43
₹294.32
25
₹26.18
₹654.45
50
₹26.18
₹1308.90
100
₹22.70
₹2270.13
500
₹20.04
₹10017.73
1000
₹19.21
₹19207.61
