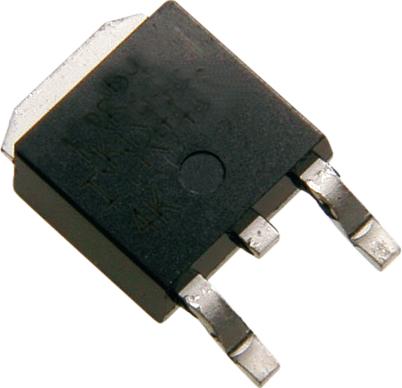

IPS6031RPBF
Manufacturer
Infineon
Description
Intelligent Power Switch 1 Channel High Side Driver in a D-Pak Package
Datasheet
DownloadProduct Attributes
Type
Case/Package
Clamping Voltage
Continuous Drain Current (ID)
Current
Current Rating
Fall Time
Height
Input Current
Lead Free
Length
Load Current
Max Junction Temperature (Tj)
Max Operating Temperature
Max Output Current
Max Power Dissipation
Max Supply Voltage
Min Operating Temperature
Min Supply Voltage
Mount
Nominal Input Voltage
Nominal Supply Current
Number of Outputs
Number of Pins
Output Current
Output Current per Channel
Output Voltage
Power Dissipation
Power Rating
Radiation Hardening
REACH SVHC
Resistance
Rise Time
RoHS
Type
Voltage
Width
Description
DPAK
39 V
8.9 A
2.8 A
8.9 A
9 µs
2.52 mm
45 µA
Lead Free
6.7056 mm
550 mA
150 °C
150 °C
16 A
2.5 W
28 V
-40 °C
6 V
Surface Mount
5.5 V
2.2 mA
1
5
2.8 A
2.8 A
28 V
2.5 W
2.5 W
No
No SVHC
46 mΩ
5 µs
Compliant
Switch
5.5 V
7.49 mm
Out of Stock
Quantity
MOQ : Unavailable
Per Unit Price
Unavailable
Total Price
Unavailable
Ships in 7-10 days from Bengaluru
