IRF9640PBF
Manufacturer
Vishay
Description

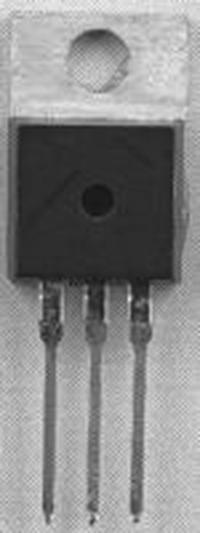

IRF9640 Series 200 V 0.5 Ohms Single P-Channel Power Mosfet - TO-220AB
Datasheet
DownloadProduct Attributes
Type
Case/Package
Contact Plating
Continuous Drain Current (ID)
Current Rating
Drain to Source Breakdown Voltage
Drain to Source Resistance
Drain to Source Voltage (Vdss)
Element Configuration
Fall Time
Gate to Source Voltage (Vgs)
Height
Input Capacitance
Lead Free
Length
Max Junction Temperature (Tj)
Max Operating Temperature
Max Power Dissipation
Min Operating Temperature
Mount
Nominal Vgs
Number of Channels
Number of Elements
Number of Pins
Packaging
Power Dissipation
Radiation Hardening
Rds On Max
REACH SVHC
Recovery Time
Resistance
Rise Time
RoHS
Schedule B
Threshold Voltage
Turn-Off Delay Time
Turn-On Delay Time
Voltage Rating (DC)
Weight
Width
Description

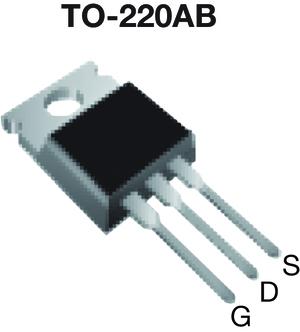

TO-220AB
Tin
-11 A
-11 A
-200 V
500 mΩ
-200 V
Single
38 ns
20 V
19.89 mm
1.2 nF
Lead Free
10.41 mm
150 °C
150 °C
125 W
-55 °C
Through Hole
-4 V
1
1
3
Bulk
125 W
No
500 mΩ
Unknown
300 ns
500 mΩ
43 ns
Compliant
8541290080, 8541290080|8541290080|8541290080|8541290080|8541290080
-4 V
39 ns
14 ns
-200 V
6.000006 g
4.7 mm
In Stock
Quantity
MOQ : 1
Minimum Qty : 1
Per Unit Price
₹202.50
Total Price
₹202.50
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹202.50
₹202.50
10
₹116.08
₹1160.84
25
₹116.08
₹2902.11
50
₹114.97
₹5748.41
100
₹104.69
₹10468.88
500
₹83.14
₹41569.50
1000
₹88.14
₹88141.48
