IRFD110PBF
Manufacturer
Vishay
Description

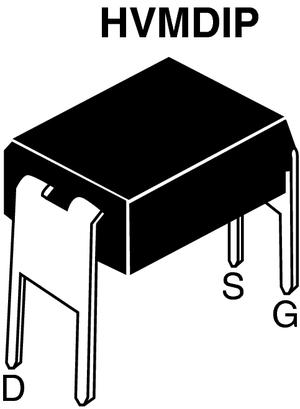

Power MOSFET, N Channel, 100 V, 1 A, 540 MilliOhms, HVMDIP, 4 Pins, Through Hole
Datasheet
DownloadProduct Attributes
Type
Case/Package
China RoHS
Continuous Drain Current (ID)
Current Rating
Drain to Source Breakdown Voltage
Drain to Source Resistance
Drain to Source Voltage (Vdss)
Dual Supply Voltage
Element Configuration
Fall Time
Gate to Source Voltage (Vgs)
Height
Input Capacitance
Lead Free
Lead Pitch
Length
Lifecycle Status
Max Junction Temperature (Tj)
Max Operating Temperature
Max Power Dissipation
Min Breakdown Voltage
Min Operating Temperature
Mount
Nominal Vgs
Number of Channels
Number of Elements
Number of Pins
Number of Terminals
Packaging
Power Dissipation
Rds On Max
REACH SVHC
Recovery Time
Resistance
Rise Time
RoHS
Row Spacing
Schedule B
Threshold Voltage
Turn-Off Delay Time
Turn-On Delay Time
Voltage Rating (DC)
Width
Description
DIP
Compliant
1 A
1 A
100 V
540 mΩ
100 V
100 V
Single
16 ns
20 V
4.57 mm
180 pF
Lead Free
2.54 mm
5 mm
Production (Last Updated: 7 months ago)
175 °C
175 °C
1.3 W
100 V
-55 °C
Through Hole
4 V
1
1
4
3
Bulk
1.3 W
540 mΩ
Yes
200 ns
540 mΩ
16 ns
Compliant
7.62 mm
8541290080, 8541290080|8541290080|8541290080|8541290080|8541290080
4 V
15 ns
6.9 ns
100 V
6.29 mm
Out of Stock
Quantity
MOQ : Unavailable
Minimum Qty : Unavailable
Per Unit Price
Unavailable
Total Price
Unavailable
Ships in 7-10 days from Bengaluru
