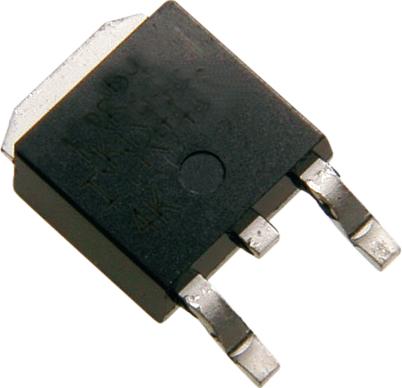

IRLR8726PBF
Manufacturer
Infineon
Description
Single N-Channel 30 V 5.8 mOhm 15 nC HEXFET Power Mosfet - TO-252AA
Datasheet
DownloadProduct Attributes
Type
Case/Package
Continuous Drain Current (ID)
Drain to Source Breakdown Voltage
Drain to Source Resistance
Drain to Source Voltage (Vdss)
Dual Supply Voltage
Element Configuration
Fall Time
Gate to Source Voltage (Vgs)
Height
Input Capacitance
Lead Free
Length
Lifecycle Status
Max Junction Temperature (Tj)
Max Operating Temperature
Max Power Dissipation
Min Operating Temperature
Mount
Nominal Vgs
Number of Pins
On-State Resistance
Package Quantity
Power Dissipation
Radiation Hardening
Rds On Max
REACH SVHC
Recovery Time
Resistance
Rise Time
RoHS
Schedule B
Termination
Threshold Voltage
Turn-Off Delay Time
Turn-On Delay Time
Width
Description
DPAK
86 A
30 V
8 mΩ
30 V
30 V
Single
16 ns
20 V
2.3876 mm
2.15 nF
Lead Free
6.7056 mm
Obsolete (Last Updated: 2 years ago)
175 °C
175 °C
75 W
-55 °C
Surface Mount
1.8 V
3
5.8 mΩ
3000
75 W
No
5.8 mΩ
No SVHC
36 ns
5.8 MΩ
49 ns
Compliant
8541290080
SMD/SMT
1.8 V
15 ns
12 ns
6.22 mm
In Stock
Quantity
MOQ : Unavailable
Per Unit Price
₹Infinity
Total Price
₹Infinity
Ships in 7-10 days from Bengaluru
