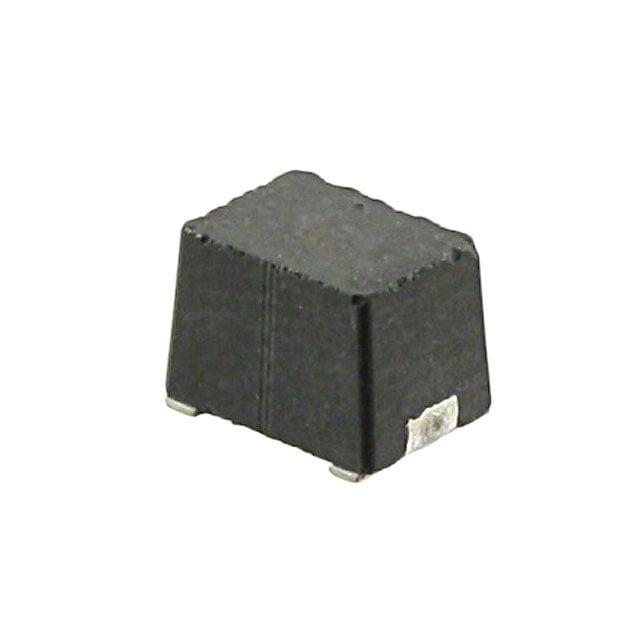

ISC1812ES2R2K
Manufacturer
Vishay Dale
Description
2.2 H Shielded Drum Core, Wirewound Inductor 390 mA 460mOhm Max 1812 (4532 Metric)
Datasheet
DownloadProduct Attributes
Type
Type
Core Material
Inductance
Tolerance
Current Rating (Amps)
Shielding
DC Resistance (DCR)
Q @ Freq
Frequency - Self Resonant
Max Operating Temperature
Inductance Frequency - Test
Mounting Type
Case/Package
Packaging
Size / Dimension
Height - Seated (Max)
Description
Drum Core, Wirewound
Iron Powder
2.2 µH
±10%
390 mA
Shielded
460mOhm Max
30 @ 7.96MHz
80MHz
-55°C ~ 125°C
7.96 MHz
Surface Mount
1812 (4532 Metric)
1812
0.177" L x 0.126" W (4.50mm x 3.20mm)
0.134" (3.40mm)
₹87.84
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
10
₹72.56
₹725.60
25
₹72.50
₹1812.62
50
₹72.50
₹3625.23
100
₹59.56
₹5955.73
500
₹59.56
₹29782.33
1000
₹48.99
₹48994.59
Product Attributes
Type
Type
Core Material
Inductance
Tolerance
Current Rating (Amps)
Shielding
DC Resistance (DCR)
Q @ Freq
Frequency - Self Resonant
Max Operating Temperature
Inductance Frequency - Test
Mounting Type
Case/Package
Packaging
Size / Dimension
Height - Seated (Max)
Description
Drum Core, Wirewound
Iron Powder
2.2 µH
±10%
390 mA
Shielded
460mOhm Max
30 @ 7.96MHz
80MHz
-55°C ~ 125°C
7.96 MHz
Surface Mount
1812 (4532 Metric)
1812
0.177" L x 0.126" W (4.50mm x 3.20mm)
0.134" (3.40mm)
