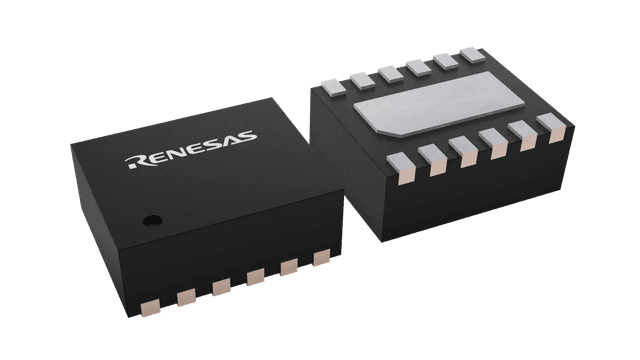

ISL854102FRZ
Manufacturer
Renesas
Description
Buck Switching Regulator IC Positive Adjustable 0.6V 1 Output 1.2A 12-VFDFN Expo
Datasheet
DownloadProduct Attributes
Type
Case/Package
Export Control Classification Number (ECCN) Code
Efficiency
Part Family
Height
Harmonized Tariff Schedule (HTS) Code
Length
Lifecycle Status
Manufacturer Lifecycle Status
Max Input Voltage
Max Junction Temperature (Tj)
Max Operating Temperature
Max Output Current
Max Output Voltage
Max Supply Voltage
Min Input Voltage
Min Operating Temperature
Min Output Voltage
Min Supply Voltage
MSL
Mount
Number of Outputs
Number of Pins
Output Configuration
Output Current
Output Type
Output Voltage
Pitch
Quiescent Current
RAM Size
RoHS
Switching Frequency
Sync/Async
Synchronous Rectifier
Topology
Width
Description
DFN
EAR99
94 %
ISL854102
900 µm
8540000000
4 mm
Production (Last Updated: 2 weeks ago)
ACTIVE (Last Updated: 2 weeks ago)
40 V
125 °C
125 °C
1.2 A
34 V
40 V
3 V
-40 °C
600 mV
3 V
3
Surface Mount
1
12
Positive
1.2 A
Adjustable
34 V
500 µm
80 µA
12 kB
Compliant
2 MHz
Synchronous
Yes
Buck
3 mm
₹287.31
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
1
₹287.31
₹287.31
10
₹228.93
₹2289.33
25
₹209.79
₹5244.78
50
₹179.18
₹8958.76
100
₹170.35
₹17035.47
500
₹170.35
₹85177.35
1000
₹156.65
₹156648.00
