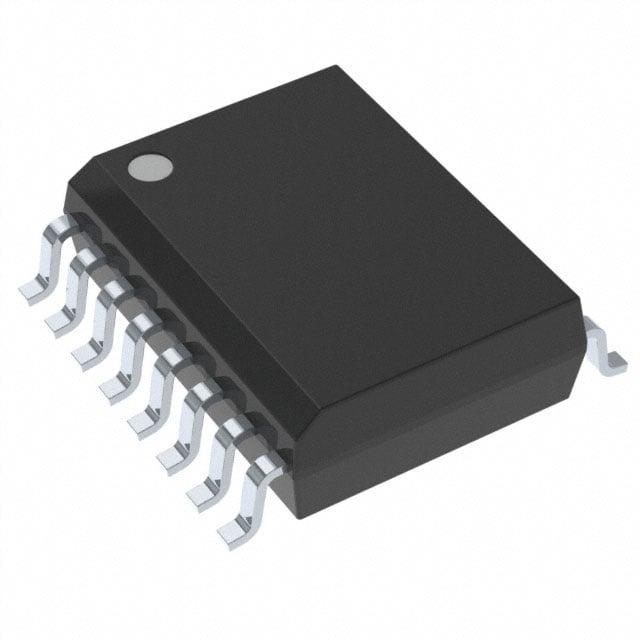

ISO7760DWR
Manufacturer
Texas Instruments
Description
General Purpose Digital Isolator 5000Vrms 6 Channel 100Mbps 85kV/s CMTI 16-SOIC (0.295", 7.50mm Width)
Datasheet
DownloadProduct Attributes
Type
Technology
Type
Isolated Power
Number of Channels
Inputs - Side 1/Side 2
Channel Type
Isolation Voltage
Common Mode Transient Immunity (Min)
Data Rate
Propagation Delay tpLH / tpHL (Max)
Pulse Width Distortion (Max)
Rise / Fall Time (Typ)
Voltage
Max Operating Temperature
Mounting Type
Case/Package
Packaging
Description
Capacitive Coupling
General Purpose
No
6
6/0
Unidirectional
5000Vrms
85kV/µs
100Mbps
16ns, 16ns
4.9ns
1.1ns, 1.4ns
2.25V ~ 5.5V
-55°C ~ 125°C
Surface Mount
16-SOIC (0.295", 7.50mm Width)
16-SOIC
₹465.74
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
1
₹465.74
₹465.74
10
₹351.27
₹3512.68
25
₹322.56
₹8063.90
50
₹322.57
₹16128.70
100
₹291.06
₹29106.15
500
₹268.49
₹134246.09
1000
₹259.79
₹259794.55
Product Attributes
Type
Technology
Type
Isolated Power
Number of Channels
Inputs - Side 1/Side 2
Channel Type
Isolation Voltage
Common Mode Transient Immunity (Min)
Data Rate
Propagation Delay tpLH / tpHL (Max)
Pulse Width Distortion (Max)
Rise / Fall Time (Typ)
Voltage
Max Operating Temperature
Mounting Type
Case/Package
Packaging
Description
Capacitive Coupling
General Purpose
No
6
6/0
Unidirectional
5000Vrms
85kV/µs
100Mbps
16ns, 16ns
4.9ns
1.1ns, 1.4ns
2.25V ~ 5.5V
-55°C ~ 125°C
Surface Mount
16-SOIC (0.295", 7.50mm Width)
16-SOIC
