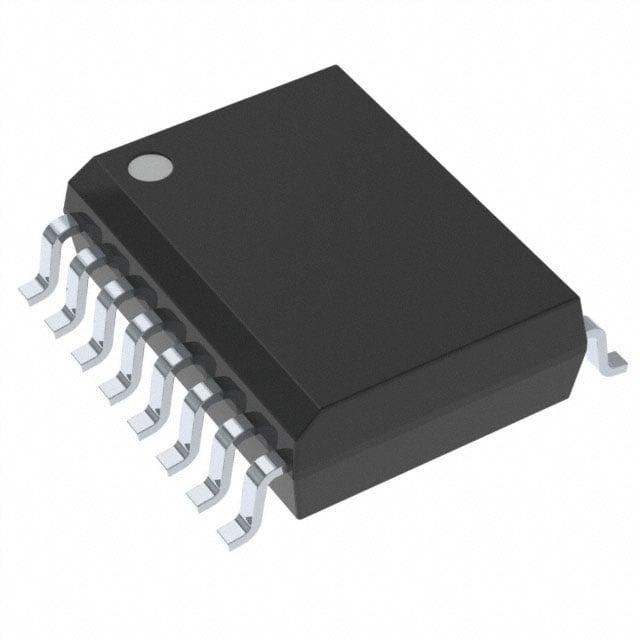

ISO7760FDWR
Manufacturer
Texas Instruments
Description
General Purpose Digital Isolator 5000Vrms 6 Channel 100Mbps 85kV/s CMTI 16-SOIC (0.295", 7.50mm Width)
Datasheet
DownloadProduct Attributes
Type
Technology
Type
Isolated Power
Number of Channels
Inputs - Side 1/Side 2
Channel Type
Isolation Voltage
Common Mode Transient Immunity (Min)
Data Rate
Propagation Delay tpLH / tpHL (Max)
Pulse Width Distortion (Max)
Rise / Fall Time (Typ)
Voltage
Max Operating Temperature
Mounting Type
Case/Package
Packaging
Description
Capacitive Coupling
General Purpose
No
6
6/0
Unidirectional
5000Vrms
85kV/µs
100Mbps
16ns, 16ns
4.9ns
1.1ns, 1.4ns
2.25V ~ 5.5V
-55°C ~ 125°C
Surface Mount
16-SOIC (0.295", 7.50mm Width)
16-SOIC
₹553.58
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
1
₹553.58
₹553.58
10
₹419.62
₹4196.19
25
₹386.24
₹9656.00
50
₹386.24
₹19311.99
100
₹349.52
₹34952.08
500
₹319.45
₹159725.30
1000
₹293.34
₹293344.40
Product Attributes
Type
Technology
Type
Isolated Power
Number of Channels
Inputs - Side 1/Side 2
Channel Type
Isolation Voltage
Common Mode Transient Immunity (Min)
Data Rate
Propagation Delay tpLH / tpHL (Max)
Pulse Width Distortion (Max)
Rise / Fall Time (Typ)
Voltage
Max Operating Temperature
Mounting Type
Case/Package
Packaging
Description
Capacitive Coupling
General Purpose
No
6
6/0
Unidirectional
5000Vrms
85kV/µs
100Mbps
16ns, 16ns
4.9ns
1.1ns, 1.4ns
2.25V ~ 5.5V
-55°C ~ 125°C
Surface Mount
16-SOIC (0.295", 7.50mm Width)
16-SOIC
