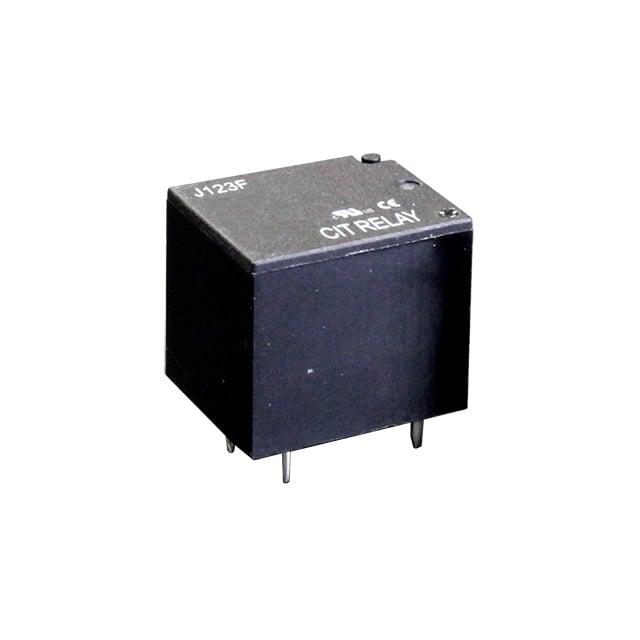

J123F1A5VDC.36
Manufacturer
CIT Relay and Switch
Description
General Purpose Relay SPST-NO (1 Form A) 5VDC Coil Through Hole
Datasheet
DownloadProduct Attributes
Type
Mounting Type
Coil Voltage
Contact Style
Contact Current Rating
Switching Voltage
Load - Max Switching
Coil Current
Coil Type
Termination
Seal Rating
Insulation Material
Must Operate Voltage
Must Release Voltage
Operate Time
Release Time
Max Operating Temperature
Contact Material
Approval Agency
Relay Type
Description
Through Hole
5VDC
SPST-NO (1 Form A)
20 A
380VAC, 110VDC - Max
7600VA, 2200W
71.4 mA
Non Latching
PC Pin
Sealed - Fully
Class F
3.75 VDC
0.5 VDC
10 ms
5 ms
-55°C ~ 125°C
Silver Tin Oxide Indium Oxide (AgSnOInO)
cURus, TUV
General Purpose
₹189.41
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
1
₹189.41
₹189.41
10
₹168.91
₹1689.09
25
₹161.41
₹4035.15
50
₹155.88
₹7793.97
100
₹150.54
₹15053.58
500
₹138.83
₹69412.82
1000
₹134.06
₹134062.14
Product Attributes
Type
Mounting Type
Coil Voltage
Contact Style
Contact Current Rating
Switching Voltage
Load - Max Switching
Coil Current
Coil Type
Termination
Seal Rating
Insulation Material
Must Operate Voltage
Must Release Voltage
Operate Time
Release Time
Max Operating Temperature
Contact Material
Approval Agency
Relay Type
Description
Through Hole
5VDC
SPST-NO (1 Form A)
20 A
380VAC, 110VDC - Max
7600VA, 2200W
71.4 mA
Non Latching
PC Pin
Sealed - Fully
Class F
3.75 VDC
0.5 VDC
10 ms
5 ms
-55°C ~ 125°C
Silver Tin Oxide Indium Oxide (AgSnOInO)
cURus, TUV
General Purpose
