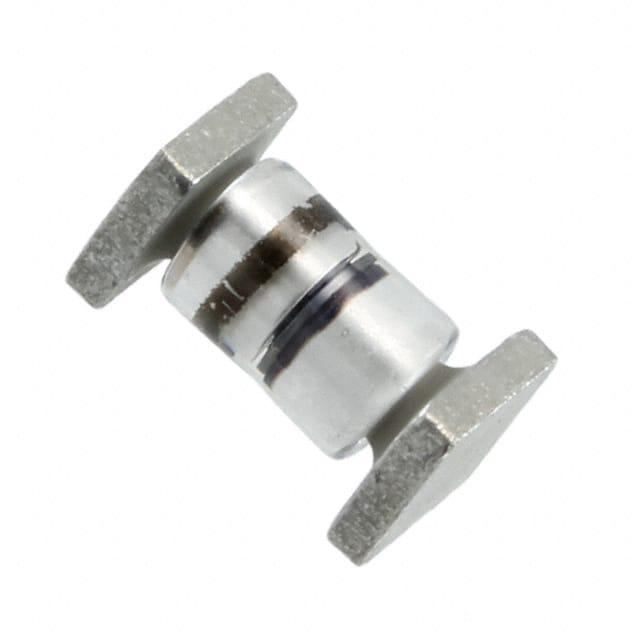

JAN1N5806US
Manufacturer
Microchip
Description
Rectifier Diode, 1 Phase, 1 Element, 2.5A, 150V V(RRM), Silicon
Datasheet
DownloadProduct Attributes
Type
Projected EOL Date
Average Rectified Current
Capacitance
Case/Package
Element Configuration
Forward Current
Forward Voltage
Height
Lifecycle Status
Max Forward Surge Current (Ifsm)
Max Junction Temperature (Tj)
Max Operating Temperature
Max Repetitive Reverse Voltage (Vrrm)
Max Reverse Voltage (DC)
Min Operating Temperature
Mount
Number of Pins
Packaging
Peak Non-Repetitive Surge Current
Peak Reverse Current
Radiation Hardening
Reverse Recovery Time
Reverse Voltage
RoHS
Schedule B
Description
2049-02-05
2.5 A
25 pF
MELF
Single
2.5 A
975 mV
2.62 mm
Production (Last Updated: 9 months ago)
35 A
175 °C
175 °C
150 V
150 V
-65 °C
Surface Mount
2
Bulk
35 A
1 µA
No
25 ns
150 V
Non-Compliant
8541100080
In Stock
Quantity
MOQ : 1
Minimum Qty : 1
Per Unit Price
₹589.31
Total Price
₹589.31
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹589.31
₹589.31
10
₹589.04
₹5890.45
25
₹589.03
₹14725.68
50
₹589.03
₹29451.37
100
₹547.49
₹54749.33
500
₹547.49
₹273746.66
Product Attributes
Type
Projected EOL Date
Average Rectified Current
Capacitance
Case/Package
Element Configuration
Forward Current
Forward Voltage
Height
Lifecycle Status
Max Forward Surge Current (Ifsm)
Max Junction Temperature (Tj)
Max Operating Temperature
Max Repetitive Reverse Voltage (Vrrm)
Max Reverse Voltage (DC)
Min Operating Temperature
Mount
Number of Pins
Packaging
Peak Non-Repetitive Surge Current
Peak Reverse Current
Radiation Hardening
Reverse Recovery Time
Reverse Voltage
RoHS
Schedule B
Description
2049-02-05
2.5 A
25 pF
MELF
Single
2.5 A
975 mV
2.62 mm
Production (Last Updated: 9 months ago)
35 A
175 °C
175 °C
150 V
150 V
-65 °C
Surface Mount
2
Bulk
35 A
1 µA
No
25 ns
150 V
Non-Compliant
8541100080
