K10P-11AT5-120
Manufacturer
TE Connectivity
Description

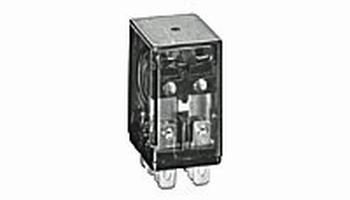

K10 Series 15 A DPDT 120 VAC Bracket Mount Miniature General Purpose Power Relay
Datasheet
DownloadProduct Attributes
Type
Approvals
China RoHS
Coil Current
Coil Power
Coil Resistance
Coil Type
Coil Voltage (AC)
Contact Current Rating
Contact Material
Contact Resistance
Contact Voltage Rating (AC)
Current Rating
Depth
Electrical Life
ELV
Height
Insulation Resistance
Lead Free
Length
Lifecycle Status
Manufacturer Lifecycle Status
Max Current Rating
Max Operating Temperature
Max Voltage Rating (AC)
Max Voltage Rating (DC)
Min Operating Temperature
Mount
Number of Pins
Operate Time
Power Consumption
REACH SVHC
Relay Type
Release Time
Response Time
RoHS
Sealable
Termination
Throw Configuration
Voltage Rating (AC)
Weight
Width
Description
CSA, UL
Non-Compliant
10 mA
1.2 W
3.9 kΩ
Non-Latching
102 V
15 A
Cadmium, Silver
100 mΩ
120 V
15 A
21.8 mm
100 kcycles
Non-Compliant
34.9 mm
1 GΩ
Lead Free
27.6 mm
Production (Last Updated: 4 days ago)
ACTIVE (Last Updated: 4 days ago)
15 A
70 °C
120 V
30 V
-45 °C
Panel
8
13 ms
1.2 W
No
General Purpose
6 ms
13 ms
Compliant
DUST PROOF
Solder
DPDT
120 V
51 g
21.7 mm
In Stock
Quantity
MOQ : 1
Per Unit Price
₹1569.39
Total Price
₹1569.39
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹1569.39
₹1569.39
10
₹1457.34
₹14573.44
25
₹1450.85
₹36271.36
50
₹1388.66
₹69433.18
100
₹1333.21
₹133321.31
500
₹1271.88
₹635941.61
1000
₹1271.88
₹1271884.11
