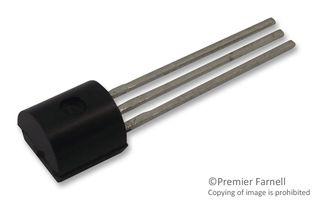

KSC945CYTA
Manufacturer
onsemi
Description
Bipolar (BJT) Single Transistor, NPN, 50 V, 300 MHz, 250 mW, 150 mA, 120
Datasheet
DownloadProduct Attributes
Type
Case/Package
Collector Base Voltage (VCBO)
Collector Emitter Breakdown Voltage
Collector Emitter Saturation Voltage
Collector Emitter Voltage (VCEO)
Current Rating
Element Configuration
Emitter Base Voltage (VEBO)
Frequency
Gain Bandwidth Product
Height
hFE Min
Lead Free
Length
Lifecycle Status
Manufacturer Lifecycle Status
Max Breakdown Voltage
Max Collector Current
Max Frequency
Max Junction Temperature (Tj)
Max Operating Temperature
Max Power Dissipation
Min Operating Temperature
Mount
Number of Elements
Number of Pins
Polarity
Power Dissipation
REACH SVHC
RoHS
Transition Frequency
Voltage Rating (DC)
Weight
Width
Description
TO-92
60 V
50 V
150 mV
50 V
150 mA
Single
5 V
300 MHz
300 MHz
8.77 mm
120
Lead Free
4.58 mm
Production (Last Updated: 4 years ago)
ACTIVE (Last Updated: 4 years ago)
50 V
150 mA
1 MHz
150 °C
150 °C
250 mW
-55 °C
Through Hole
1
3
NPN
250 mW
No
Compliant
300 MHz
50 V
240 mg
3.86 mm
₹28.36
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
10
₹16.92
₹169.17
25
₹16.92
₹422.92
50
₹16.92
₹845.84
100
₹10.66
₹1065.72
500
₹7.81
₹3905.50
1000
₹5.16
₹5157.40
