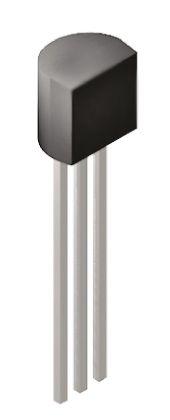

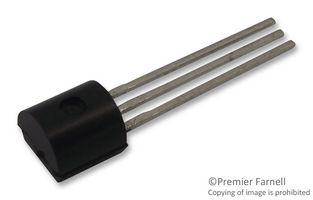

KSP13BU
Manufacturer
onsemi
Description
Small Signal Bipolar Transistor, 0.5A I(C), 1-Element, NPN, Silicon, TO-92
Datasheet
DownloadProduct Attributes
Type
Case/Package
China RoHS
Collector Base Voltage (VCBO)
Collector Emitter Breakdown Voltage
Collector Emitter Saturation Voltage
Collector Emitter Voltage (VCEO)
Current Rating
Element Configuration
Emitter Base Voltage (VEBO)
Gain Bandwidth Product
Height
hFE Min
Lead Free
Length
Lifecycle Status
Manufacturer Lifecycle Status
Max Collector Current
Max Junction Temperature (Tj)
Max Operating Temperature
Max Power Dissipation
Min Operating Temperature
Mount
Number of Elements
Number of Pins
Number of Terminals
Packaging
Polarity
Power Dissipation
Radiation Hardening
REACH SVHC
RoHS
Schedule B
Transition Frequency
Voltage Rating (DC)
Weight
Width
Description
TO-92-3
Compliant
30 V
30 V
1.5 V
30 V
500 mA
Single
10 V
125 MHz
5.33 mm
10000
Lead Free
4.58 mm
Production (Last Updated: 4 years ago)
ACTIVE (Last Updated: 4 years ago)
500 mA
150 °C
150 °C
625 mW
-55 °C
Through Hole
1
3
3
Bulk
NPN
625 mW
No
Yes
Compliant
8541210080, 8541210080|8541210080|8541210080|8541210080|8541210080
125 MHz
30 V
179 mg
3.86 mm
In Stock
Quantity
MOQ : 4
Minimum Qty : 4
Per Unit Price
₹32.17
Total Price
₹128.67
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹126.91
₹126.91
10
₹19.65
₹196.53
25
₹19.60
₹490.00
50
₹19.62
₹980.89
100
₹7.83
₹782.59
500
₹7.83
₹3913.85
1000
₹6.51
₹6506.64
