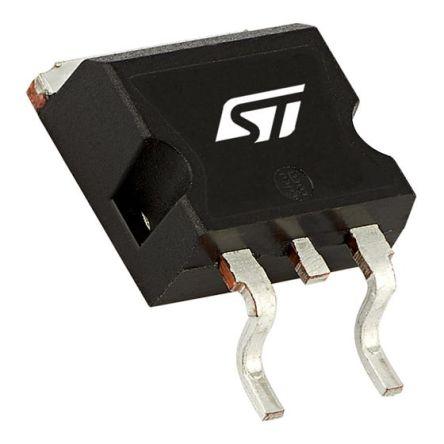

L7809CD2T-TR
Manufacturer
STMicroelectronics
Description
Standard Regulator Pos 9V 1.5A 3-Pin(2+Tab) D2PAK T/R / IC REG LDO 9V 1.5A D2PAK
Datasheet
DownloadProduct Attributes
Type
Case/Package
China RoHS
Dropout Voltage
Height - Seated (Max)
Lead Free
Length
Lifecycle Status
Max Input Voltage
Max Junction Temperature (Tj)
Max Operating Temperature
Max Output Current
Min Input Voltage
Min Operating Temperature
Min Output Voltage
Mount
Number of Channels
Number of Circuits
Number of Outputs
Number of Pins
Number of Regulators
Number of Terminals
Output Current
Output Type
Output Voltage
Packaging
Polarity
Power Supply Rejection Ratio (PSRR)
Quiescent Current
Radiation Hardening
RoHS
Schedule B
Terminal Pitch
Voltage Tolerance
Width
Description
TO-263
Non-Compliant
2 V
4.83 mm
Lead Free
10.2 mm
Production (Last Updated: 7 months ago)
22 V
125 °C
125 °C
1.5 A
11.5 V
-40 °C
9 V
Surface Mount
1
1
1
3
1
2
1.5 A
Fixed
9 V
Tape and Reel
Positive
55 dB
8 mA
No
Compliant
8542390000, 8542390000|8542390000, 8542390000|8542390000|8542390000, 8542390000|8542390000|8542390000|8542390000
2.54 mm
4 %
9.15 mm
In Stock
Quantity
MOQ : 2
Per Unit Price
₹93.37
Total Price
₹186.73
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹186.73
₹186.73
10
₹60.73
₹607.32
25
₹60.71
₹1517.86
50
₹60.70
₹3034.84
100
₹50.43
₹5042.65
500
₹47.00
₹23500.67
1000
₹43.86
₹43861.57
