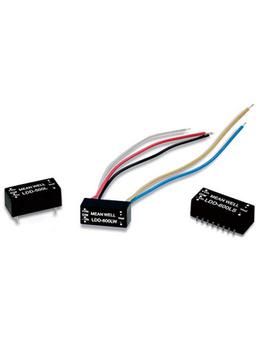

LDD-1000L
Manufacturer
Mean Well
Description
1000mA 2-30 VDC DC-DC Constant Current Step-Down LED Driver 6-36Vin Pin Style
Datasheet
DownloadProduct Attributes
Type
Approvals
Current - Output 1
Efficiency
Height
Height - Seated (Max)
Length
Lifecycle Status
Max Input Voltage
Max Operating Temperature
Max Output Current
Max Output Power
Max Output Voltage
Max Supply Current
Max Switching Frequency
Min Input Voltage
Min Operating Temperature
Min Output Voltage
Mount
Nominal Input Voltage
Number of Circuits
Number of Outputs
Number of Pins
Number of Terminals
Output Power
REACH SVHC
RoHS
Terminal Pitch
Voltage - Output 1
Width
Description
CE, EN
1 A
95 %
12.2 mm
12.25 mm
31.8 mm
Production (Last Updated: 7 months ago)
36 V
71 °C
1 A
30 W
30 V
990 mA
1 MHz
6 V
-40 °C
2 V
PCB, Through Hole
24 V
1
1
9
9
30 W
Yes
Compliant
2.54 mm
30 V
20.3 mm
In Stock
Quantity
MOQ : 1
Per Unit Price
₹481.95
Total Price
₹481.95
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹481.95
₹481.95
10
₹452.87
₹4528.70
25
₹452.89
₹11322.18
50
₹449.08
₹22454.08
100
₹458.98
₹45897.84
500
₹458.98
₹229488.29
1000
₹458.98
₹458976.59
