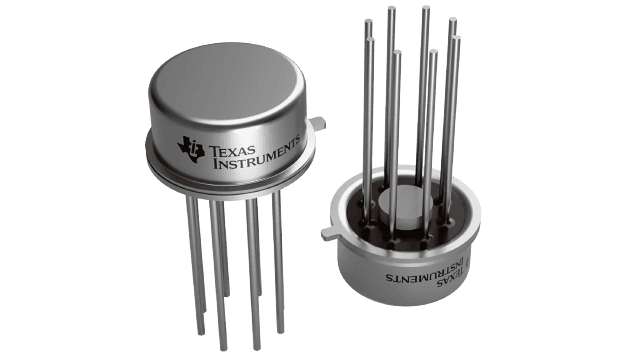

LM101AJ
Manufacturer
Texas Instruments
Description
Single, 40-V, 1-MHz operational amplifier 8-CDIP -55 to 125
Datasheet
DownloadProduct Attributes
Type
Case/Package
Common Mode Rejection Ratio
Dual Supply Voltage
Gain Bandwidth Product
Height
Input Bias Current
Input Offset Voltage (Vos)
Length
Lifecycle Status
Manufacturer Lifecycle Status
Max Dual Supply Voltage
Max Operating Temperature
Min Dual Supply Voltage
Min Operating Temperature
Mount
Nominal Supply Current
Number of Channels
Number of Circuits
Number of Elements
Number of Pins
Operating Supply Current
Operating Supply Voltage
Output Current
Packaging
Power Dissipation
Power Supply Rejection Ratio (PSRR)
Radiation Hardening
RoHS
Schedule B
Slew Rate
Thickness
Voltage Gain
Width
Description
CDIP
80 dB
9.121518 MV
1 MHz
5.08 mm
75 nA
2 mV
10.16 mm
Production (Last Updated: 1 day ago)
ACTIVE (Last Updated: 1 day ago)
22 V
125 °C
5 V
-55 °C
Through Hole
1.2 mA
1
1
1
8
1.8 mA
22 V
25 mA
Rail/Tube
1 W
80 dB
No
Non-Compliant
8542330000, 8542330000|8542330000, 8542330000|8542330000|8542330000, 8542330000|8542330000|8542330000|8542330000
0.5 V/µs
4.064 mm
104.08 dB
6.502 mm
In Stock
Quantity
MOQ : 1
Per Unit Price
₹1968.69
Total Price
₹1968.69
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹1968.69
₹1968.69
10
₹1605.54
₹16055.40
25
₹1605.56
₹40138.93
50
₹1462.51
₹73125.59
100
₹1462.51
₹146251.17
500
₹1463.32
₹731660.44
