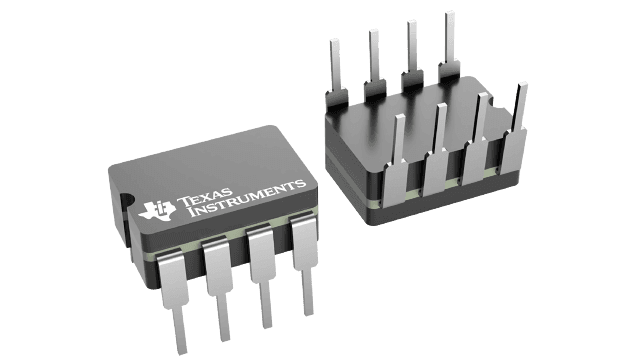

LM158JGB

Manufacturer

Texas Instruments

Description

Military-grade, dual, 30-V, 700-kHz operational amplifier 8-CDIP -55 to 125

Datasheet

download datasheetDownload

Product Attributes

Type

Bandwidth

Case/Package

Common Mode Rejection Ratio

Gain Bandwidth Product

Height

Input Bias Current

Input Offset Voltage (Vos)

Lead Free

Length

Lifecycle Status

Manufacturer Lifecycle Status

Max Dual Supply Voltage

Max Operating Temperature

Max Supply Voltage

Min Dual Supply Voltage

Min Operating Temperature

Min Supply Voltage

Mount

Number of Amplifiers

Number of Channels

Number of Elements

Number of Pins

Packaging

Radiation Hardening

REACH SVHC

RoHS

Schedule B

Slew Rate

Thickness

Voltage Gain

Width

Description

700 kHz

CDIP

70 dB

700 kHz

5.08 mm

150 nA

5 mV

Contains Lead

9.6 mm

Production (Last Updated: 4 days ago)

ACTIVE (Last Updated: 4 days ago)

16 V

125 °C

32 V

1.5 V

-55 °C

3 V

Through Hole

2

2

2

8

Rail/Tube

No

No

Non-Compliant

8542330000, 8542330000|8542330000|8542330000|8542330000|8542330000

0.3 V/µs

4.57 mm

100 dB

6.67 mm

In Stock


Quantity

MOQ : Unavailable

decrement quantity
increment quantity

Per Unit Price

₹Infinity

Total Price

₹Infinity


delivery

Ships in 7-10 days from Bengaluru
